GUSTAV
AGX Orin
AI Vision Controller for System Integrators

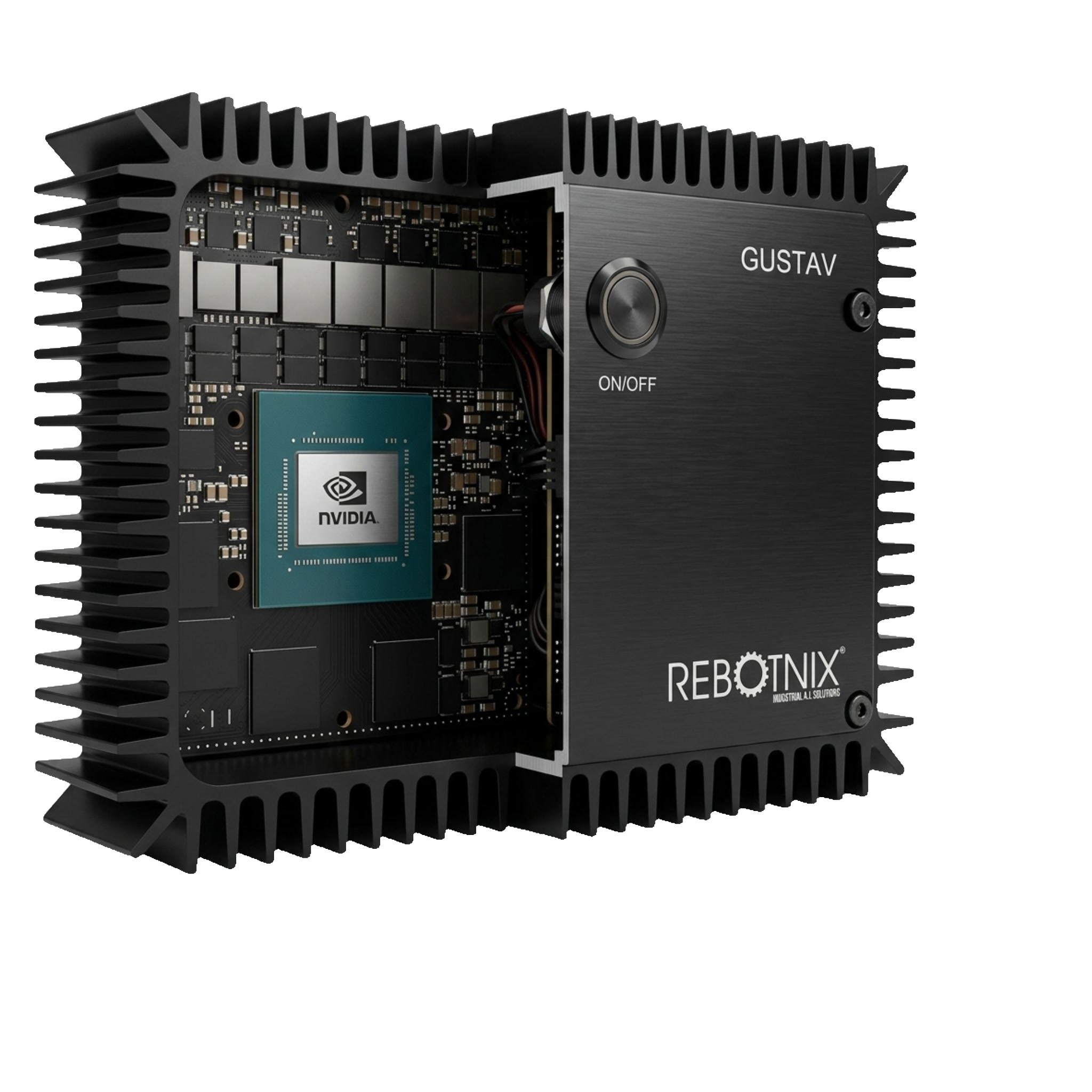

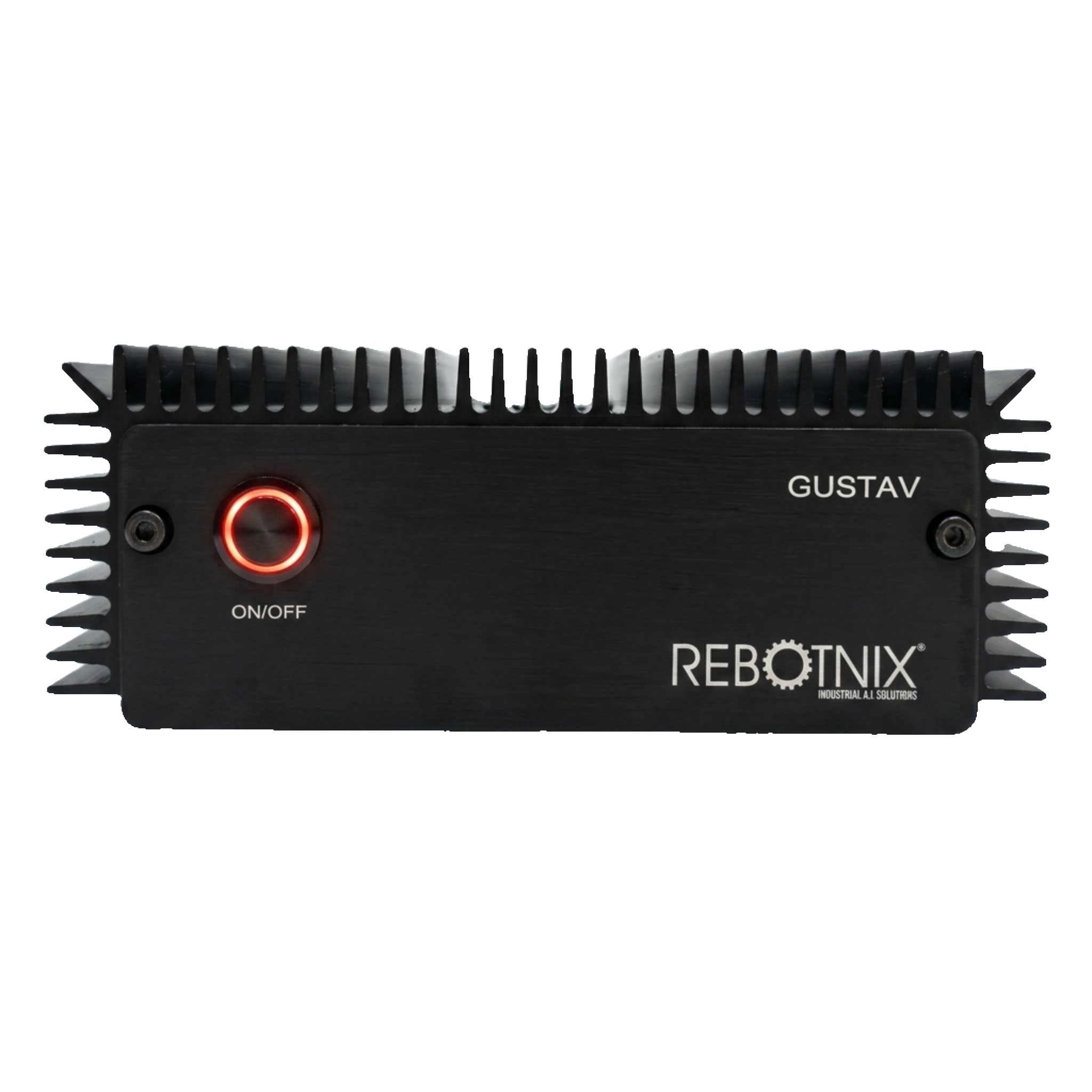

The GUSTAV AGX Orin is an industrial AI vision controller built on NVIDIA Jetson AGX Orin. It runs KINEVA® AI models directly at the machine — no external PC, no cloud. Designed for system integrators who need reliable, high-performance vision processing in the field.
275 TOPS
AI Performance
NVIDIA Jetson AGX Orin
IP67 / ATEX
Camera Support
Compatible with REBOTNIX IP67 / ATEX cameras
PoE
Power over Ethernet
Industrial PoE switch from REBOTNIX required
Up to 8 TB
Local SSD Storage
Protocol Support
KEY SPECIFICATIONS
GUSTAV AGX Orin — Key Specifications
UP TO 275 TOPS
AI Performance
NVIDIA Jetson AGX Orin delivers real‑time inference for complex vision models — directly on the machine, without external compute.
IP67 / ATEX
Camera Compatibility
Operates with REBOTNIX IP67 / ATEX-rated industrial cameras — purpose-built for harsh factory and hazardous area environments. Dust-proof, waterproof, plug-and-play compatible.
PoE
Power over Ethernet
Single cable for data and power. Simple installation, minimal wiring, maximum reliability — ideal for multi‑camera deployments on the production line. Requires an industrial PoE switch from REBOTNIX to power connected cameras.
Up to 8 TB SSD
Local Data Storage
High‑speed local storage for image buffering, model data, and edge logging. No cloud connection required — full data sovereignty.
APPLICATIONS
Where System Integrators Deploy GUSTAV
01
Industrial Automation & Machine Vision
For production lines requiring local processing of camera signals and sensor feeds — without cloud detours, without latency. Multiple GbE ports allow simultaneous connection to the field network and office network.
02
SCADA & IoT Integration
Control systems and SCADA infrastructures can be connected directly via the network interfaces. The GUSTAV provides the hardware basis for local AI pre‑processing — less bandwidth, less latency, more control.
03
Security & Critical Infrastructure
For facilities where failsafe reliability and data protection are the top priority. The 256‑bit hardware crypto chip protects against tampering — fully operable offline, no cloud dependency.
TECHNICAL SPECIFICATIONS
GUSTAV AGX Orin — Full Technical Specs
| Parameter | Value |
|---|---|
| AI Accelerator | NVIDIA Jetson AGX Orin |
| AI Performance | Up to 275 TOPS |

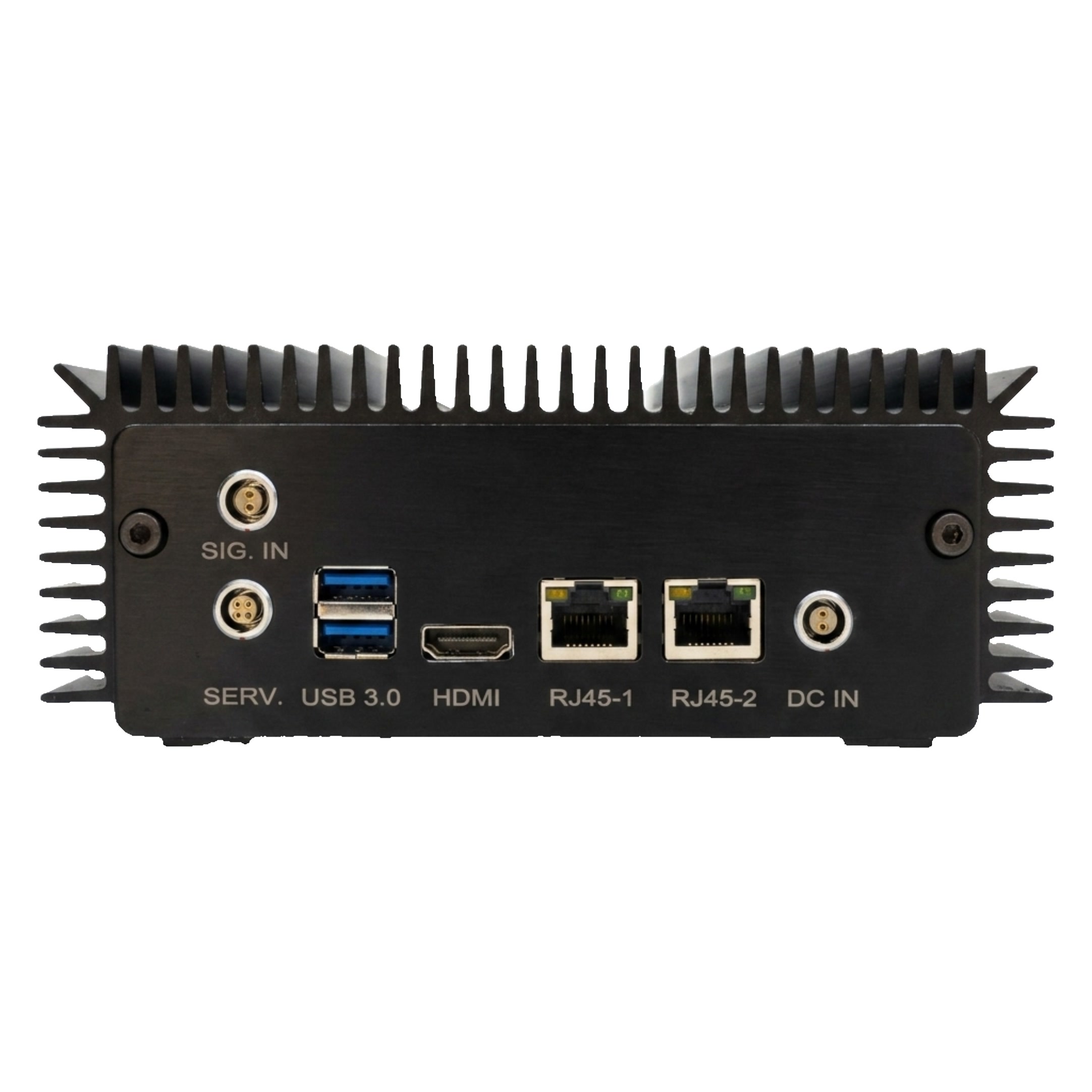

| Camera Interface | 2× GigE Vision (RJ45 / PoE) |
| Supported Protocols | OPC-UA, Modbus, Profibus, GigE Vision / GigE IP |
| USB | 2× USB 3.0 |
| Display | 1× HDMI 2.0 |
| Storage | Up to 8 TB NVMe SSD |
| Security | 256‑bit hardware crypto chip |
| Mounting | DIN rail (control cabinet compatible) |
| Cooling | Passive + active, continuous operation |
| Compliance | EU AI Act, CRA (Cyber Resilience Act), NVIDIA Preferred Partner |
| Origin | Engineered & manufactured in Germany |
| Delivery | 2–3 weeks |
| Price | 4.999,00 € excl. VAT |
AI MODELS & CAPABILITIES
Powered by KINEVA® — Real AI at the Edge
The GUSTAV runs KINEVA® — REBOTNIX’s proprietary AI platform. No third-party dependency, no licence risk. Visual AI detects foreign materials, evaluates surfaces, and monitors processes in real time — directly on the machine.
KINEVA® CNN

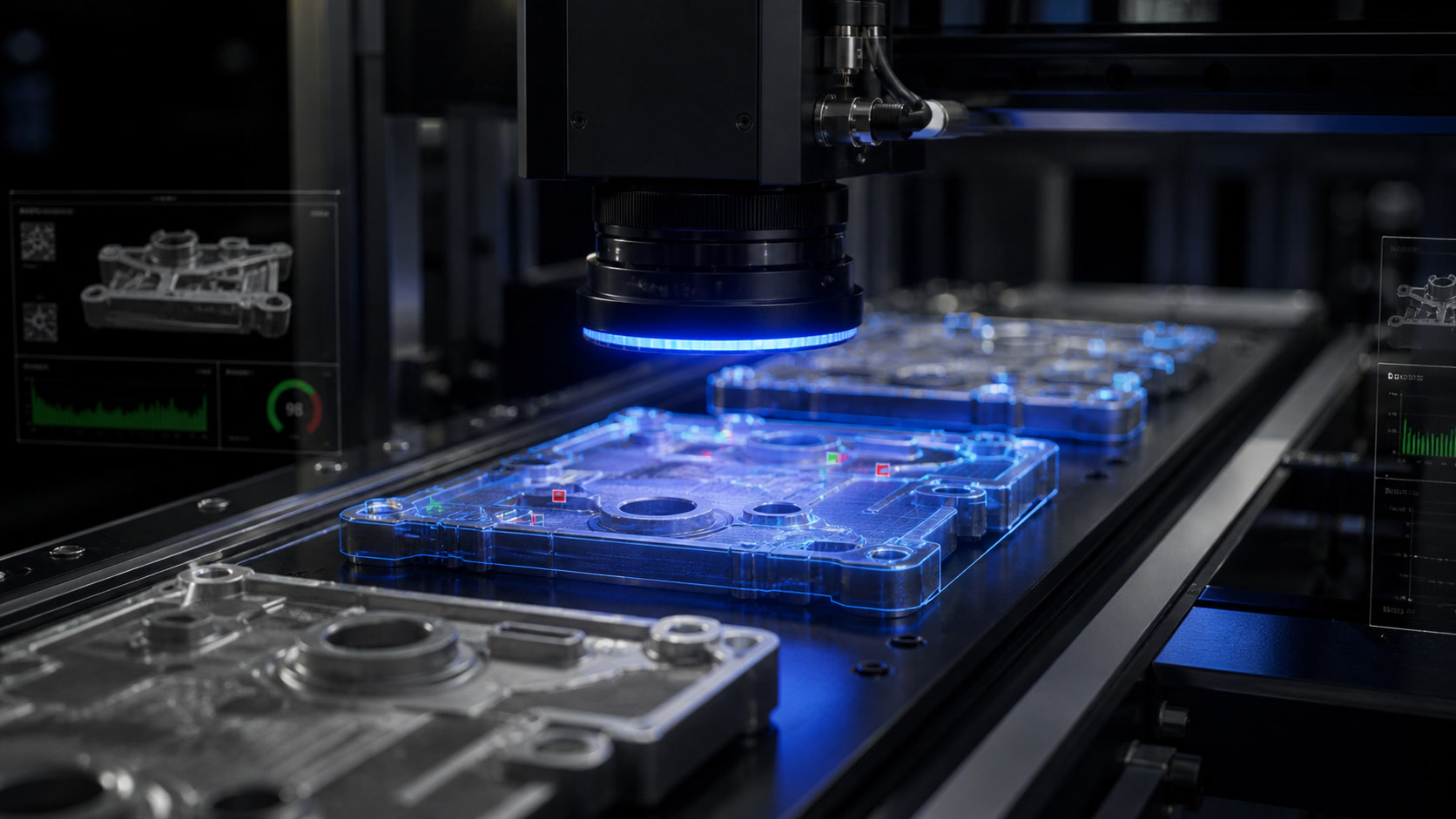

Convolutional Neural Network for high-speed surface inspection, defect detection, and dimensional accuracy — frame by frame, in real time.
KINEVA® PCNN

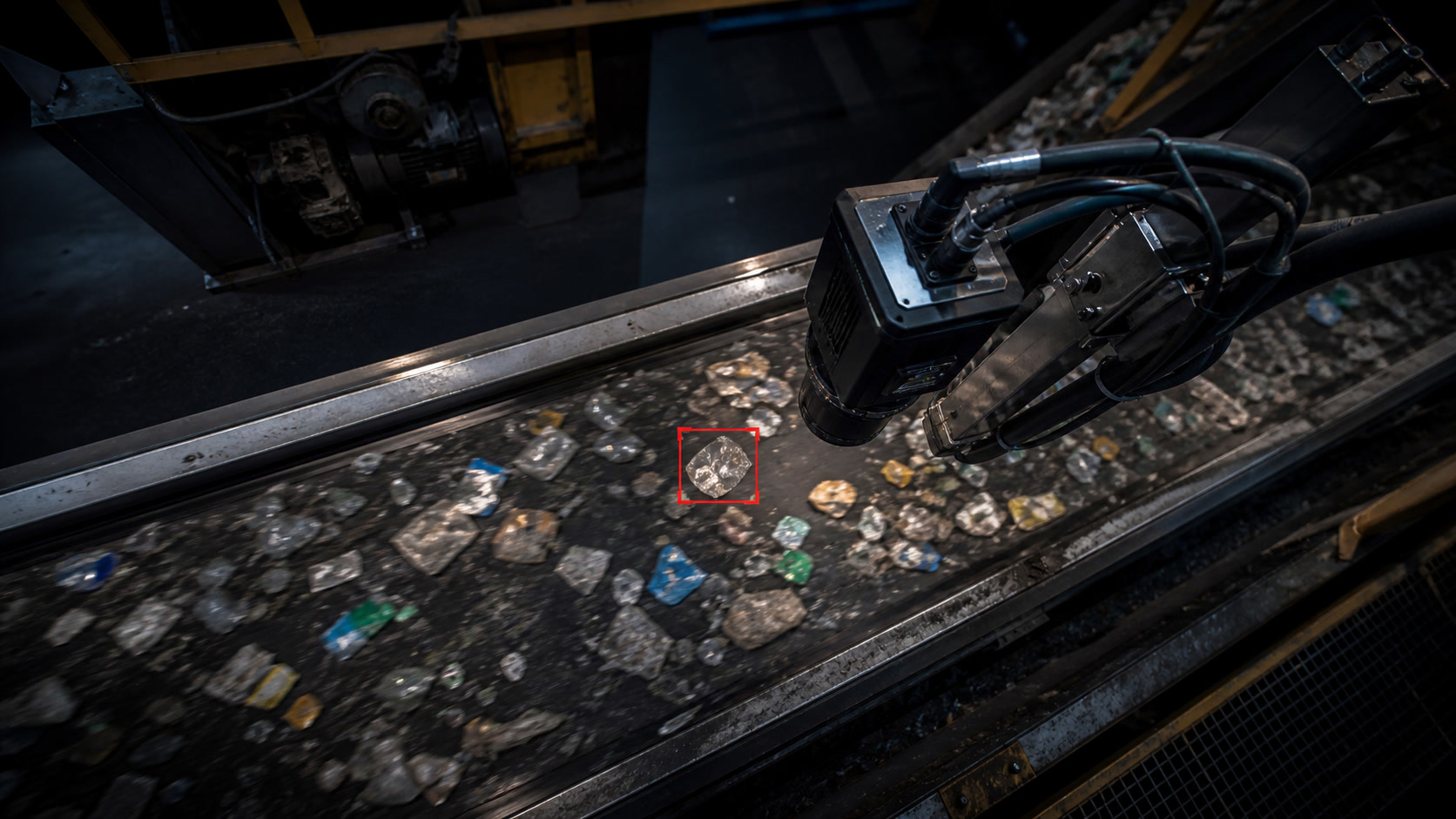

Predictive CNN for machine health monitoring and wear detection. Identifies failures hours before they happen — no unplanned downtime.
KINEVA® VLLM

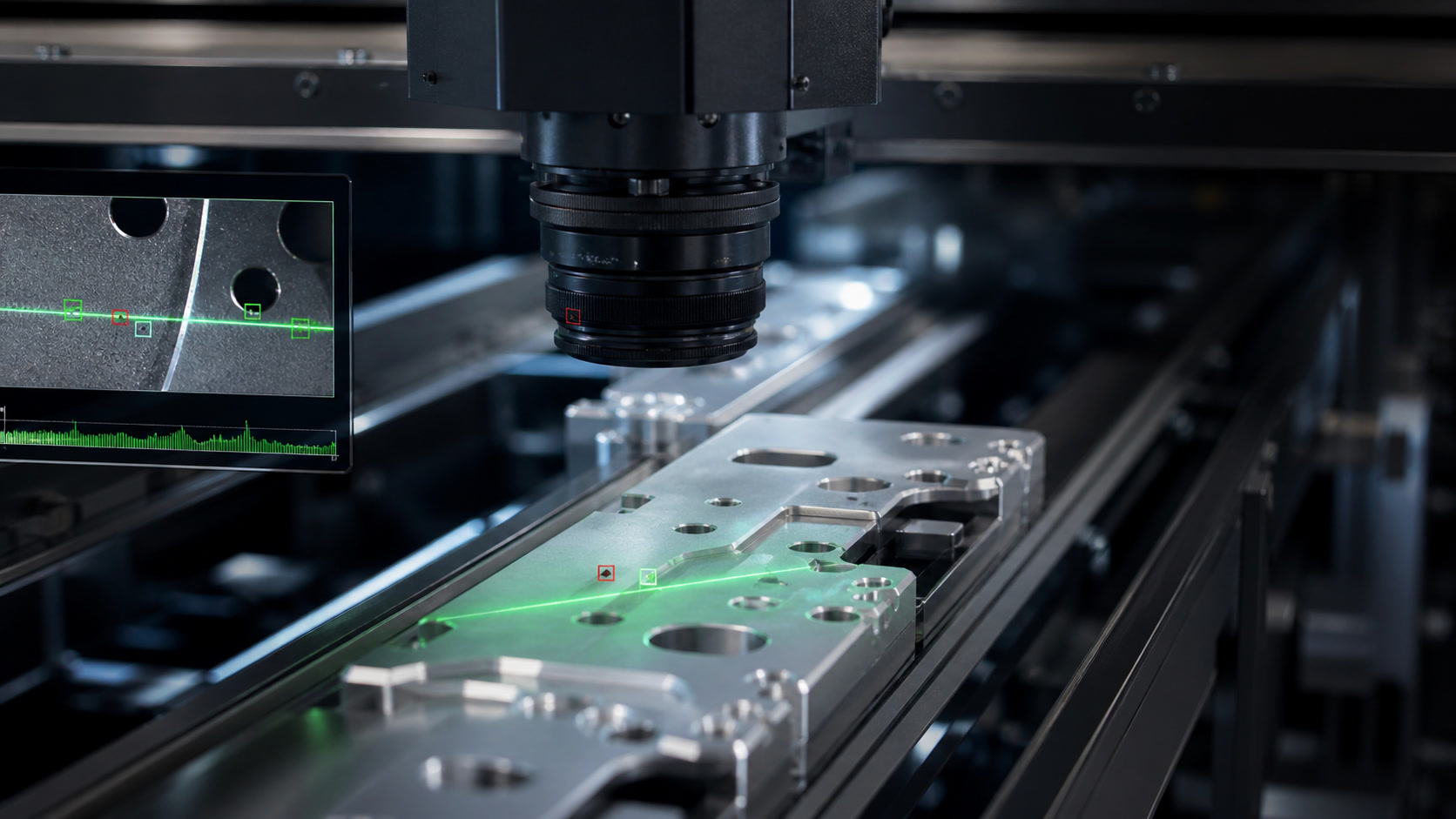

Vision Large Language Model for complex scene understanding, contaminant traceability, and automated process documentation.
What GUSTAV sees & does
From surface defects to thermal anomalies — GUSTAV processes all vision tasks in real time, directly at the machine. No cloud, no latency, no data leaving the facility.
GDPR and EU AI Act compliant. Validated through regular audits. Fully operable offline.
COMPATIBLE CAMERAS

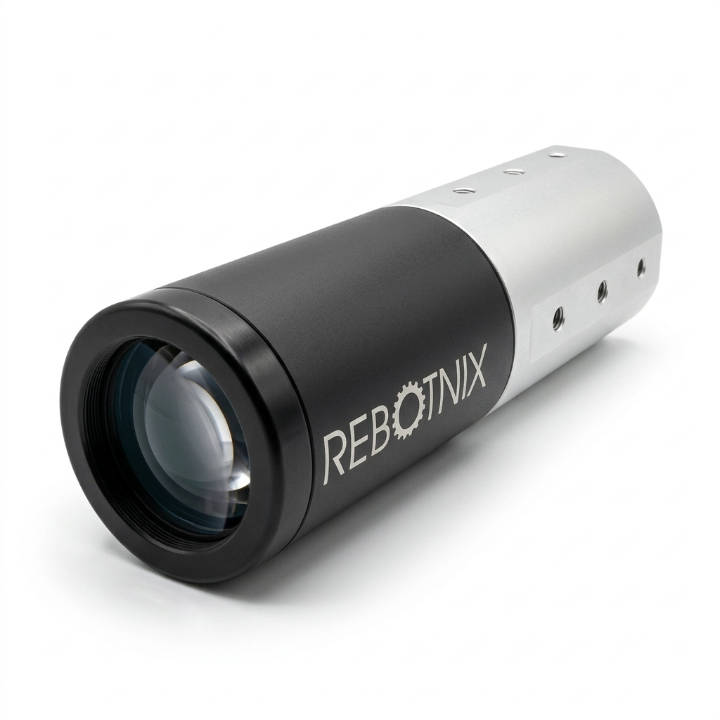

REBOTNIX Industrial Cameras
The GUSTAV AGX Orin works with REBOTNIX’s purpose-built industrial camera lineup — designed for harsh factory environments, IP67 / ATEX rated, powered via industrial PoE switch.
SEAMLESS INTEGRATION
Connects to Your Existing Infrastructure
Camera Input
Automation Output
No custom solutions. No retrofitting. No downtime.
GUSTAV connects directly into existing automation infrastructure — end-to-end encrypted, no cloud, one protocol for the entire plant. All camera feeds, sensor data, and AI results run edge-native. No external infrastructure required.
WHY REBOTNIX
Built for the Toughest Environments
Built for Manufacturing

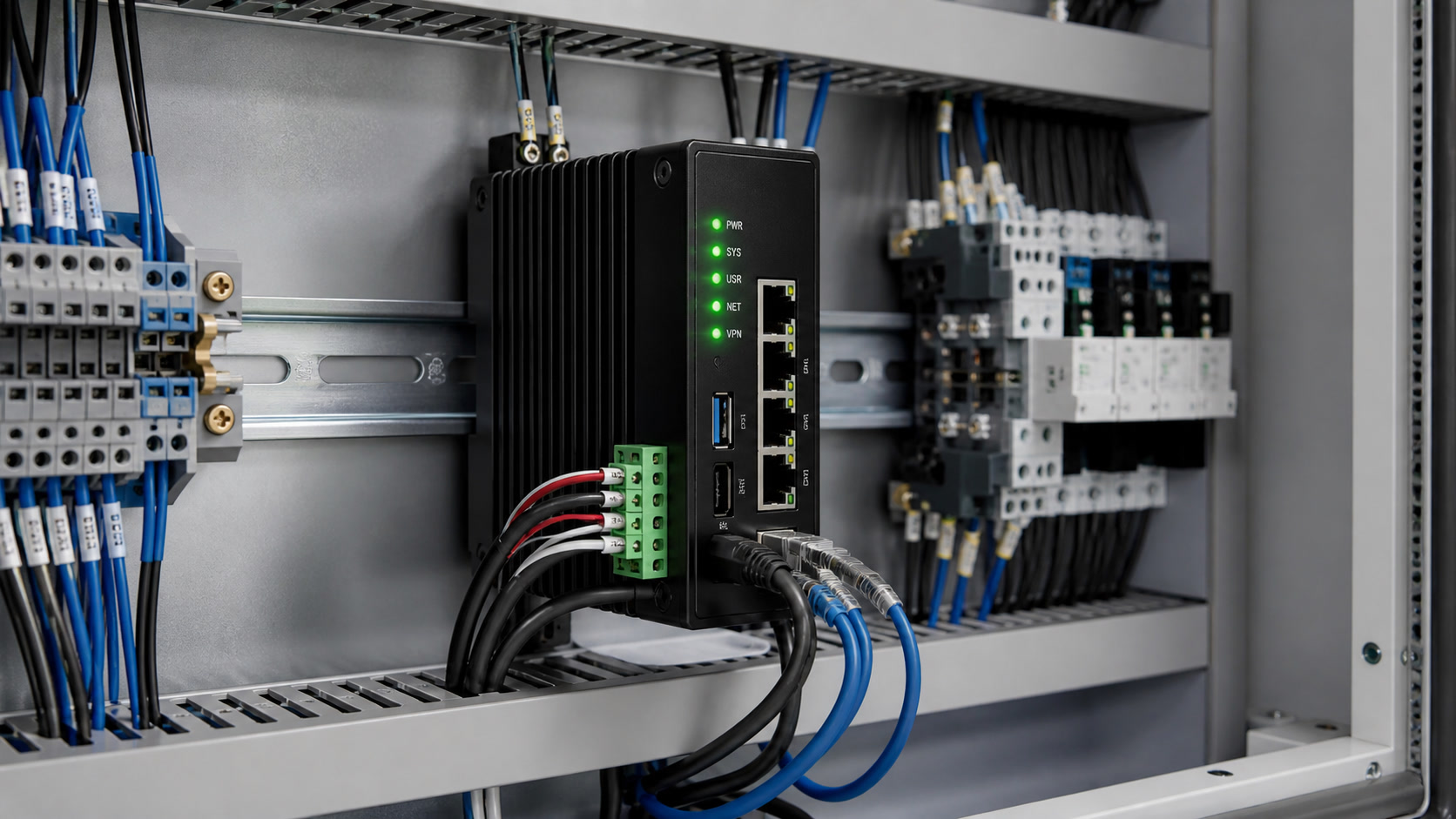

Reliable performance for demanding industrial inspection tasks. DIN rail mounting and passive cooling enable continuous 24/7 operation in control cabinets.
High Performance at the Edge
Real‑time processing of complex AI models directly on the machine. Up to 275 TOPS ensures no frame is missed — even on high‑speed production lines.
Modular and Future‑Proof
Flexible camera configurations and seamless integration into existing systems. IP67 / ATEX cameras connect via PoE — one cable, zero compromise.
