GUSTAV MINI 2 x GMSL

Description

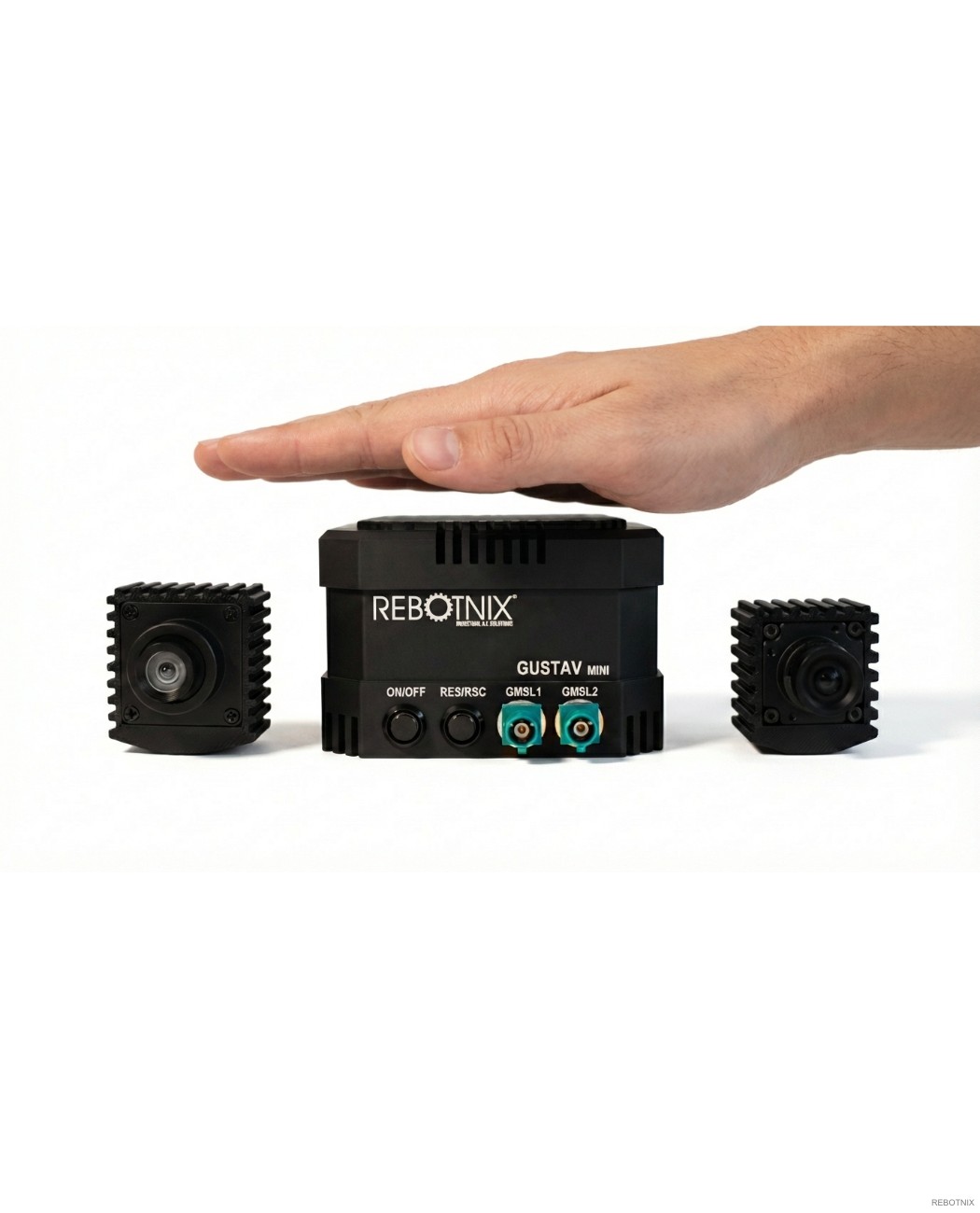

GUSTAV MINI 2x GMSL – Production-Ready Edge AI Computer for GMSL Camera Systems

The GUSTAV MINI 2x GMSL is a production-ready edge AI computer built for autonomous vehicles, mobile robots, drones, and industrial machine vision. Based on the NVIDIA Jetson Orin NX platform with up to 100 TOPS, it connects directly to two GMSL automotive cameras and runs AI inference at the edge — no cloud, no latency, no compromise. Designed and manufactured in Germany by REBOTNIX, an NVIDIA Preferred Partner for over a decade.

Powered by the NVIDIA® Jetson™ Orin NX platform (8 GB or 16 GB RAM), the GUSTAV MINI delivers up to ~100 TOPS of AI computing performance, enabling real-time, local execution of AI models without cloud dependency. This ensures ultra-low latency, maximum data sovereignty, and high operational reliability — ideal for mission-critical edge deployments.

Flexible Connectivity & Camera Integration

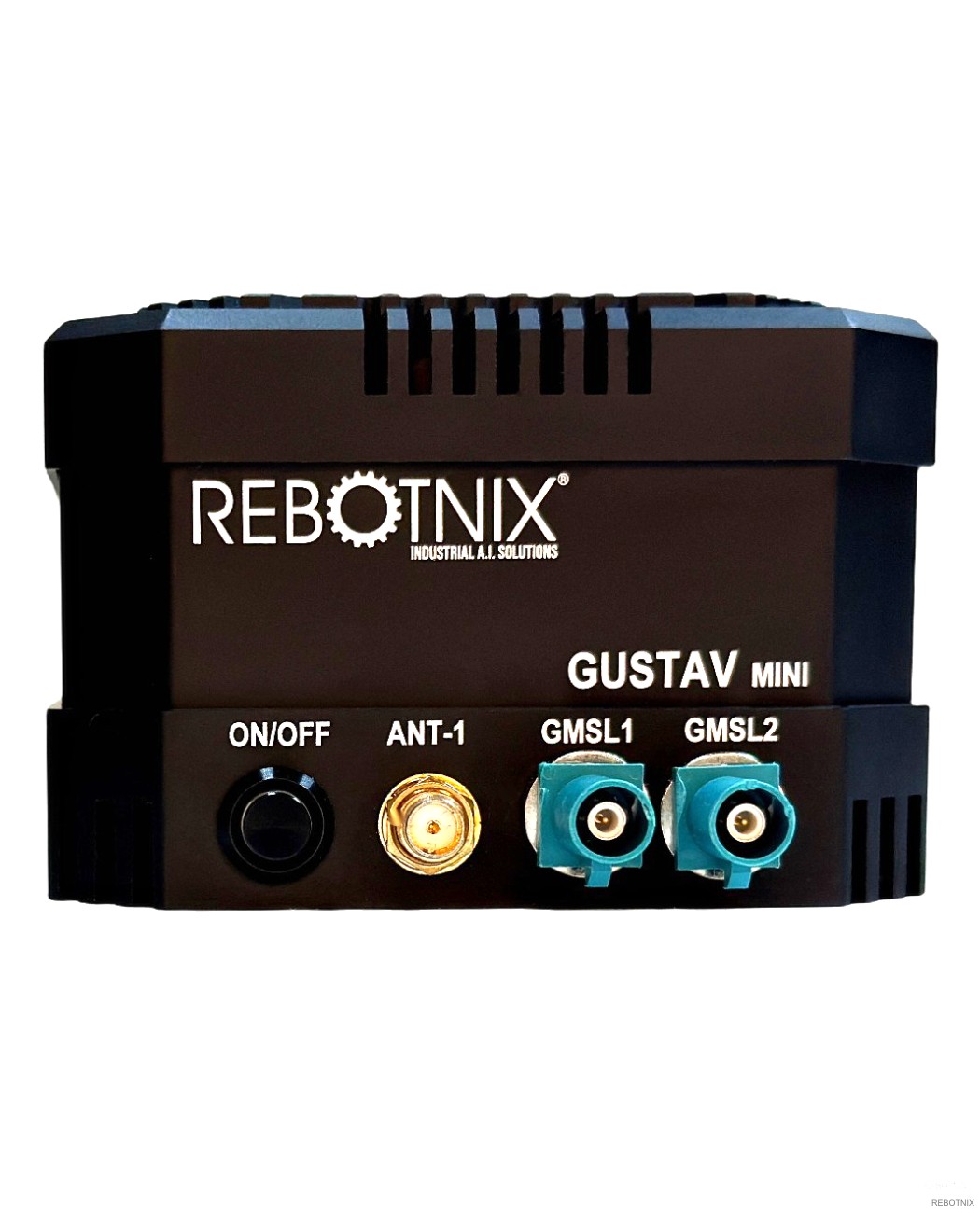

The GUSTAV MINI includes two integrated GMSL camera inputs, supporting direct connection to high-quality industrial cameras such as ECON20, ECON21, Leopard IMX390, and Leopard OWL. GMSL technology ensures interference-resistant signal transmission over longer cable distances, perfect for applications with high IP protection requirements.

Additional industrial interfaces include:

• Ethernet (M12)
• CAN bus
• I2C
• RS232 / UART
• GPIO

Supported GMSL cameras

• Tier4 C1 (ISX021)
• Tier4 C2 (IMX490)
• Tier4 C3 (IMX728)
• Leopard IMX390
• Stereolabs ZEDX
• Stereolabs ZEDX One GS
• Stereolabs ZEDX One 4k*
• Econ SturdeCAM20
• FSM-IMX568
• D3 AR0234
• D3 IMX390
• D3 ISX031
• Allied Vision Alvium GMSL Sensors

All interfaces are fully integrated, allowing headless operation without an external monitor or HDMI — ideal for embedding in vehicles, machines, or control cabinets.

Optional WLAN provides flexible wireless connectivity when required.

The system is housed in a black anodized aluminum enclosure, offering robust mechanical durability, efficient heat dissipation, and a professional industrial appearance.

Security & Compliance

A built-in 256-bit hardware crypto chip ensures secure device authentication and system integrity. This hardware-based security architecture meets current cybersecurity standards and supports regulatory compliance, including the EU AI Act. Companies benefit from strong protection against tampering, unauthorized access, and cyberattacks.

Why Choose GUSTAV MINI Over a Development Kit?

NVIDIA Jetson development kits are designed for prototyping. They ship with consumer-grade carrier boards, plastic housings, and interfaces that don’t survive real-world deployment. The GUSTAV MINI is different: custom-designed carrier board with M12 industrial Ethernet, GMSL camera inputs with coaxial locking connectors, CAN bus for vehicle integration, and a machined aluminum housing rated for -20°C to 70°C. Every unit ships pre-flashed with the latest JetPack, tested, and ready to deploy — not ready to develop.

Typical Applications

Computer Vision & Smart Monitoring

• Intelligent traffic and smart city monitoring (traffic sign, road damage, or environmental event detection)
• Automatic Number Plate Recognition (ANPR) for parking and access control

Robotics & Autonomous Systems

• Real-time AI processing for autonomous vehicles, mobile robots, drones, and AGVs
• On-device obstacle detection, navigation, and sensor fusion

Industrial Automation & Smart Factory

• AI-based quality inspection, object detection, and defect detection on production lines
• Real-time monitoring of manufacturing processes and anomaly detection
• Predictive maintenance using camera and sensor data to prevent unplanned downtime

Security & Critical Infrastructure

• AI-powered video surveillance with person detection, tracking, and behavior analysis
• Deployment in industrial sites, warehouses, and security-sensitive environments, with enhanced protection via the crypto chip

Research & Development

• Rapid prototyping and validation of edge AI applications
• Deployment and testing of custom AI models using standard SDKs and frameworks (Python, C/C++)

Frequently Asked Questions

Which GMSL cameras are compatible?

The GUSTAV MINI 2x GMSL supports Tier4 C1/C2/C3, Leopard IMX390, Stereolabs ZEDX/ZEDX One, ECON SturdeCAM20, D3 AR0234/IMX390/ISX031, and Allied Vision Alvium GMSL sensors.

What is the difference between Orin Nano and Orin NX?

Orin Nano delivers up to 40 TOPS and is ideal for single-camera or lightweight AI workloads. Orin NX delivers up to 100 TOPS and handles multiple concurrent AI models — recommended for multi-camera setups or complex inference tasks.

Can I run the system without a monitor?

Yes. The GUSTAV MINI operates fully headless. All configuration and deployment is done via network or SSH.

Is this suitable for vehicle integration?

Yes. With 9–60V DC input, M12 Ethernet, CAN bus, GMSL camera inputs, and -20°C to 70°C operating range, it is designed for automotive and mobile platforms.

Do you ship internationally?

Yes. We ship worldwide from Germany. Export documentation is handled by REBOTNIX.

Conclusion

The GUSTAV MINI 2x GMSL by REBOTNIX is a reliable, high-performance industrial edge AI computer for organizations requiring secure, scalable, real-time AI at the edge. Combining NVIDIA’s latest AI technology, industrial-grade interfaces, and a compact, rugged design, it provides an ideal foundation for computer vision, robotics, and automation solutions.

Compliance & Certifications

CE certified and suitable for industrial and commercial environments.
