RTK-GPS

Description

RTK-GPS Add-On – Centimeter-Accurate Positioning for REBOTNIX Edge Systems

The RTK-GPS Add-On from REBOTNIX delivers highly precise real-time position data with centimeter-level accuracy in a compact, industrial-grade module. Even under demanding environmental conditions, the add-on ensures reliable positioning and is ideally suited for edge systems, mobile robots, autonomous vehicles, and industrial applications where the highest accuracy and stability are required.

High-Precision RTK-GPS with Modular Selection

The RTK-GPS Add-On supports the global satellite systems GPS, GLONASS, Galileo, BeiDou, and QZSS with update rates of up to 30 Hz. For optimal adaptation to different applications, three RTK-GPS module variants are available:

ZED-F9P – Maximum Precision for Surveying & Automation

• Proven multi-band RTK module for highest position accuracy
• Ideal for surveying, reference systems, construction, and precision automation
• Excellent performance in static and dynamic applications

ZED-F9R – Sensor Fusion for Dynamic Systems

• RTK-GNSS with integrated IMU sensor fusion
• Particularly suitable for mobile robots, autonomous vehicles, and AGVs
• More stable position data during brief GNSS outages (e.g., in warehouses, urban canyons)

X20 – Industrial High-Performance GNSS Solution

• Powerful RTK module for industrial continuous applications
• High robustness and reliability for demanding deployment scenarios
• Ideal for industry, smart infrastructure, and professional OEM integrations

This modular selection allows the RTK-GPS Add-On to be optimally tailored to the specific use case and desired accuracy and dynamic profile.

Robust, Compact Design

The add-on is housed in a black anodized aluminum enclosure that reliably protects against mechanical stress, dust, and environmental factors. The robust construction ensures permanent, low-maintenance operation, while the premium design underscores professional standards.

Flexible Integration & Two Connection Variants

For maximum flexibility in system integration, the RTK-GPS Add-On is available with two different connection options:

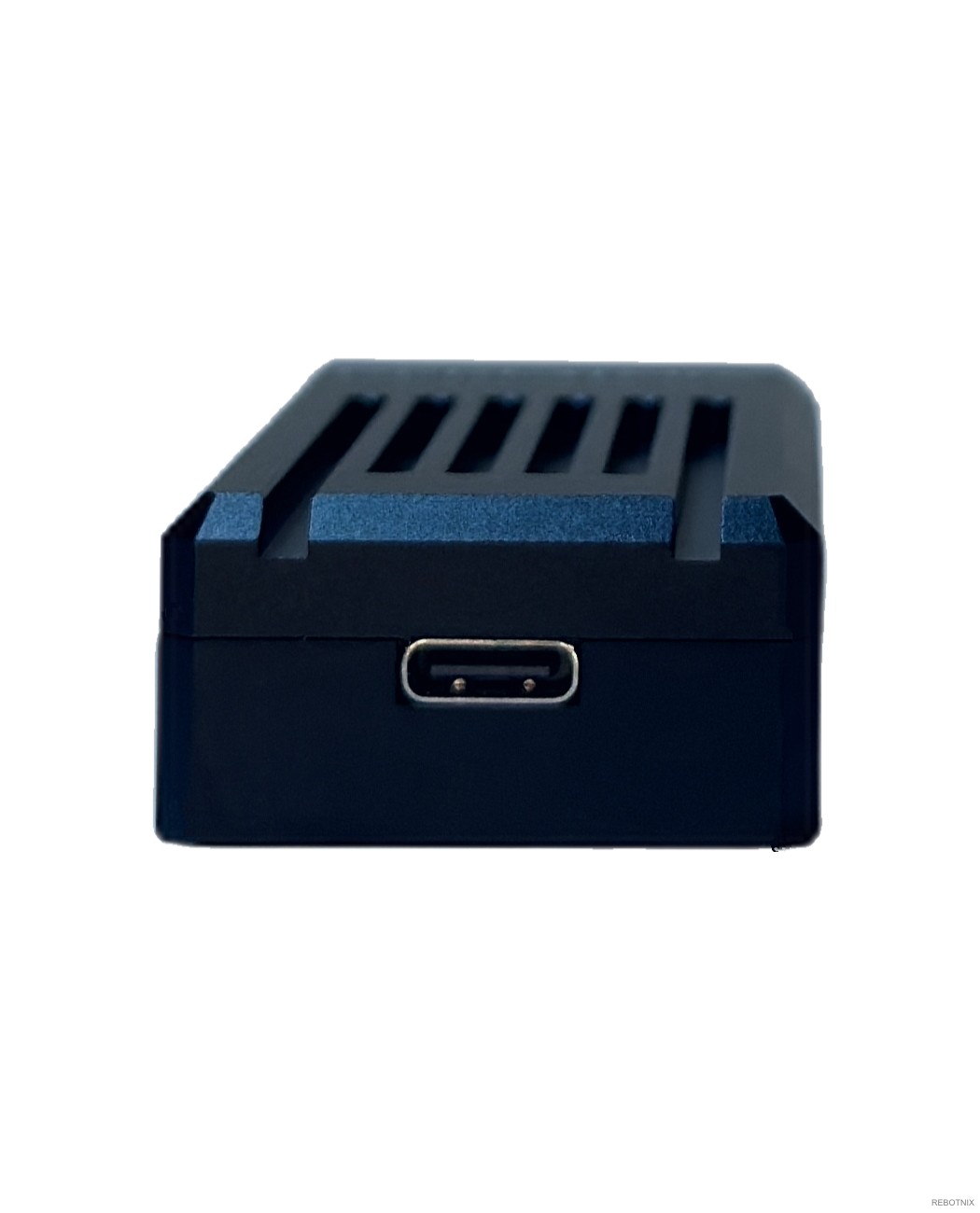

• USB-C – simple plug-and-play integration for development, prototyping, and standard applications

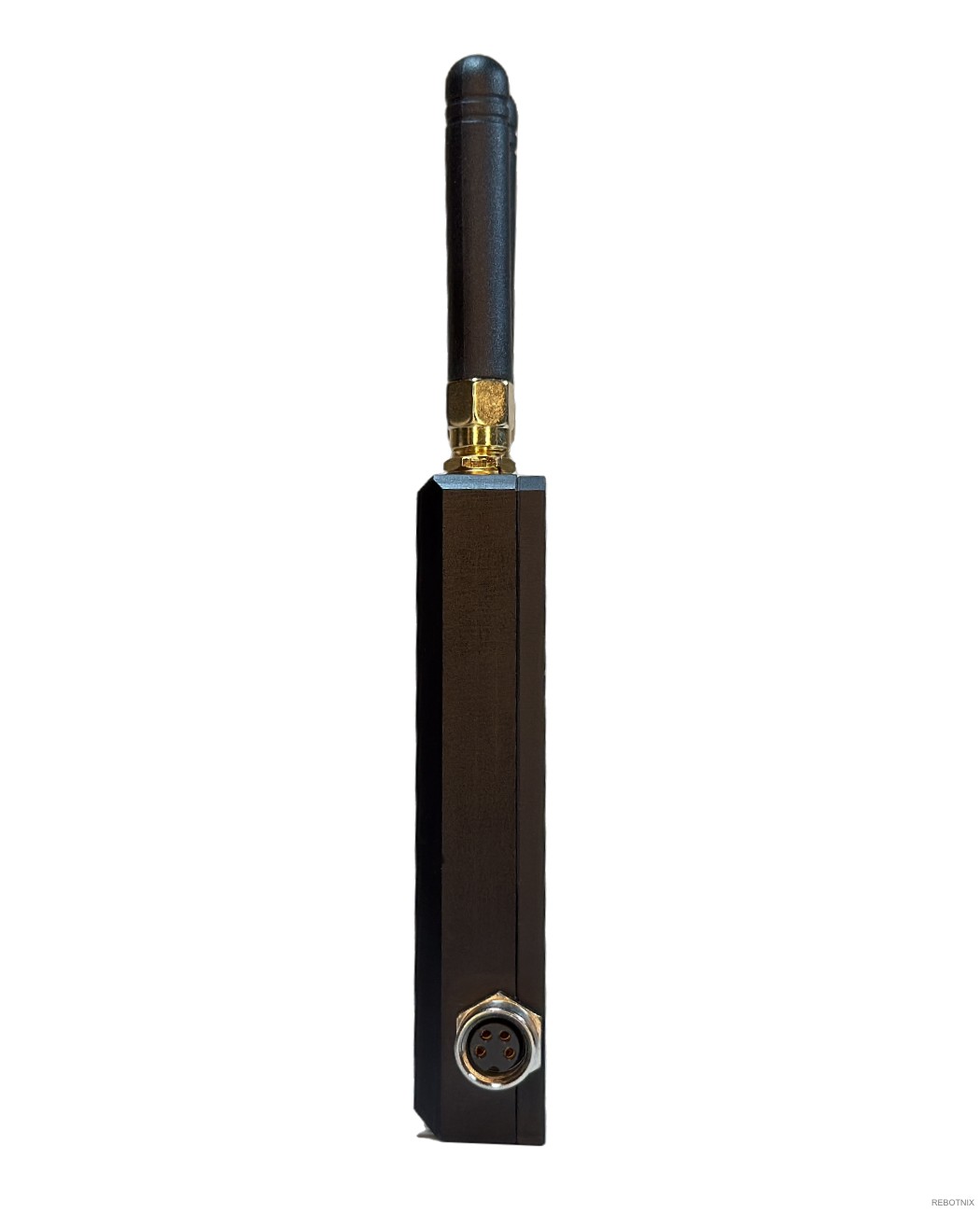

• M8 connector – vibration-resistant, industrial connection for mobile, vehicle-based, or permanently installed systems

Both variants enable power supply and data transmission over a single interface, significantly reducing installation effort.

Certifications & Standards

The RTK-GPS Add-On is CE and FCC certified and meets international standards for safety and electromagnetic compatibility. This ensures reliable and legally compliant operation worldwide.

Typical Applications

• Mobile robots & autonomous vehicles – precise navigation and stable position data
• Industry & manufacturing – real-time positioning of vehicles and material handling systems
• Surveying & construction – highly accurate position data for professional applications
• Edge & IoT systems – integration of precise location data for AI-powered analysis

Conclusion

The RTK-GPS Add-On from REBOTNIX offers maximum flexibility and precision through the choice of three powerful RTK modules and two industrial-grade connection variants. With robust construction, easy integration, and international certification, it is the ideal solution for professional applications where reliable centimeter-level accuracy is critical – from industry to robotics to autonomous systems.

Compliance & Certifications

The RTK-GPS Add-On is CE and FCC compliant, meeting the applicable regulatory requirements for use in industrial, automotive, and commercial environments.
