WLAN & RTK-GPS

Description

WLAN & RTK-GPS Add-On – Precise Positioning and Fast Wi-Fi 6 Connectivity in One Module

The WLAN & RTK-GPS Add-On from REBOTNIX combines high-precision RTK-GPS technology with powerful Wi-Fi 6 wireless connectivity in a compact and robust module. It enables centimeter-accurate real-time positioning and stable wireless data transmission simultaneously – ideal for mobile edge systems, autonomous robots, industrial applications, and IoT solutions.

High-Precision RTK-GPS with Modular Selection

The integrated RTK-GPS supports the satellite systems GPS, GLONASS, Galileo, BeiDou, and QZSS and delivers position data with centimeter-level accuracy at high update rates. For optimal adaptation to different deployment scenarios, three RTK-GPS module variants are available:

ZED-F9P – Maximum Precision for Surveying & Automation

• Multi-band RTK module for highest position accuracy
• Ideal for surveying, construction, reference stations, and precise automation
• Very high accuracy in static and dynamic applications

ZED-F9R – Optimized for Mobile and Dynamic Systems

• RTK-GNSS with integrated IMU sensor fusion
• Particularly suitable for autonomous vehicles, mobile robots, and AGVs
• More stable position data during brief GNSS outages (e.g., in warehouses or urban environments)

X20 – Industrial High-Performance GNSS Solution

• Powerful RTK module for industrial continuous applications
• High robustness and reliability for OEM, smart infrastructure, and industrial projects
• Designed for long-term, stable operation in demanding environments

This modular selection enables precise configuration according to accuracy requirements, dynamics, and application area.

Powerful Wi-Fi 6

The integrated WLAN module offers Wi-Fi 6 (IEEE 802.11ax) with 2×2 MU-MIMO on 2.4 GHz and 5 GHz and achieves data rates of up to 2.4 Gbps. A secondary diversity antenna improves wireless stability and ensures reliable wireless communication – even in industrial or mobile environments.

Robust, Compact Design

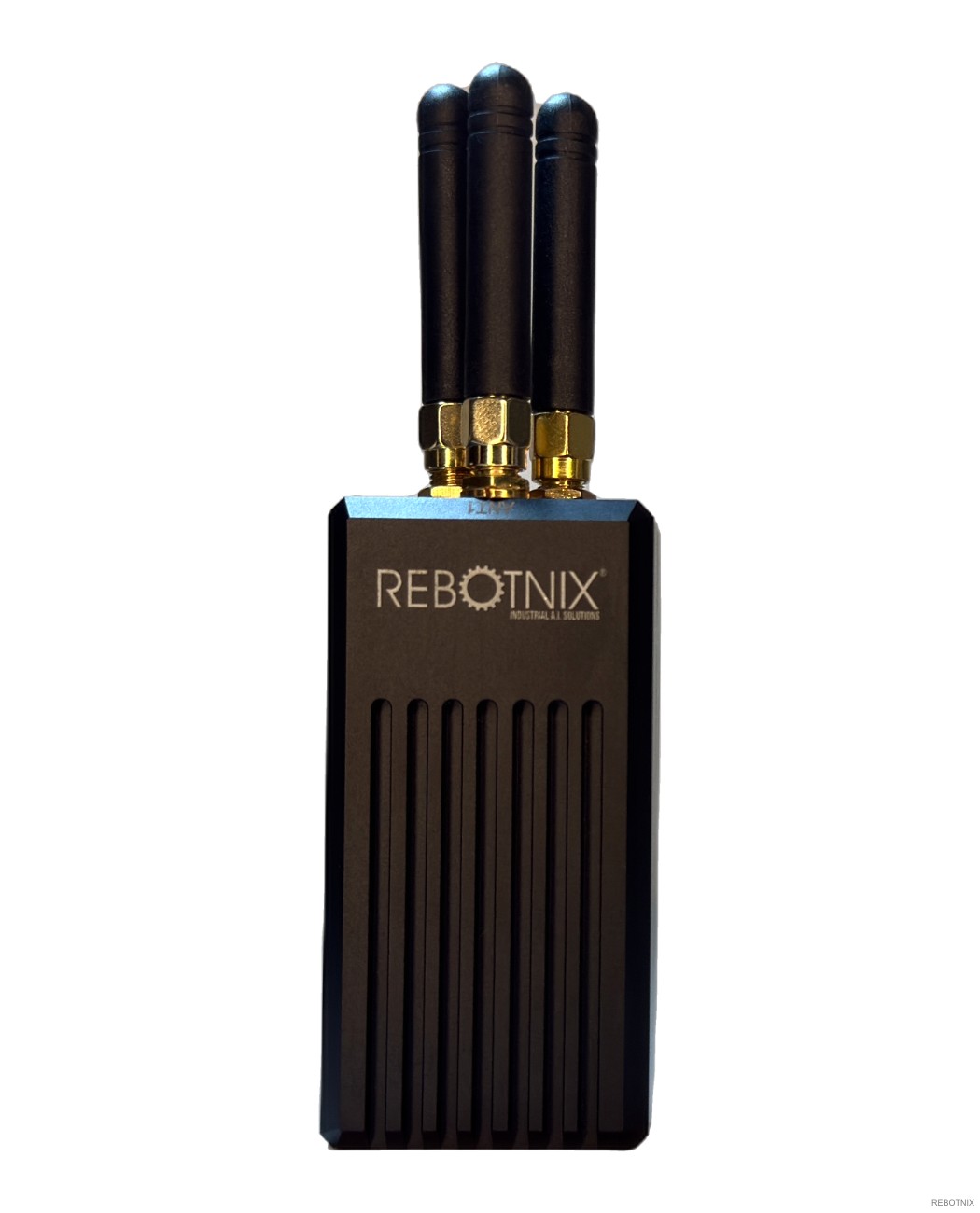

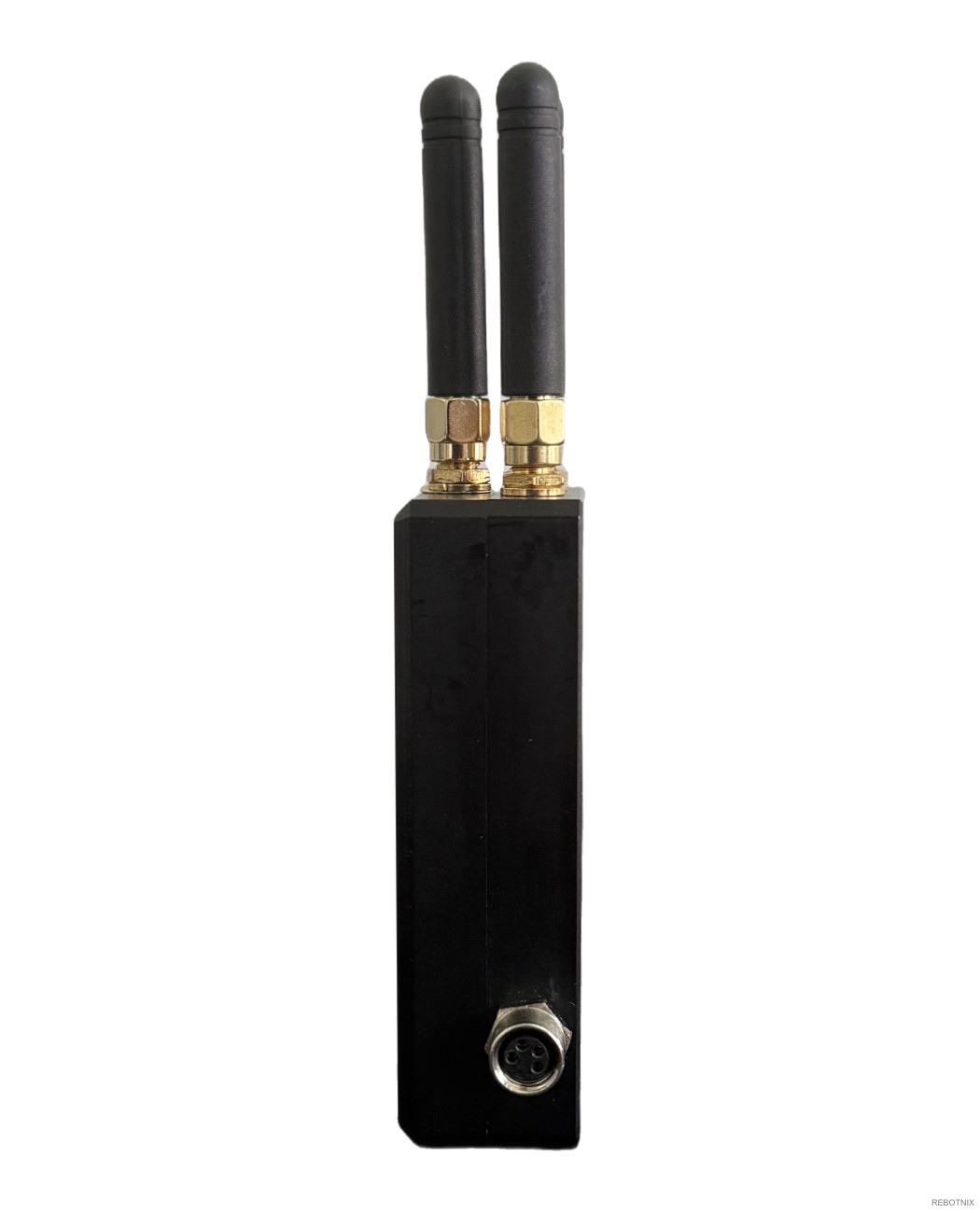

The add-on is housed in a black anodized aluminum enclosure that reliably protects against mechanical stress, dust, moisture, and extreme environmental conditions. Despite its industrial-grade construction, the module maintains a modern, professional appearance.

Energy-Efficient & Versatile Integration

The WLAN & RTK-GPS Add-On is energy-efficient, scalable, and integrates seamlessly into REBOTNIX edge systems. It is particularly suitable for applications where precise positioning and wireless data communication are needed simultaneously.

Typical Applications

• Autonomous vehicles & mobile robots – precise navigation and stable wireless connectivity
• Industry & manufacturing – wireless real-time data communication for edge systems
• Field surveying & smart agriculture – highly accurate position data via Wi-Fi 6
• IoT & edge computing applications – combination of location determination and wireless networking

Conclusion

The WLAN & RTK-GPS Add-On from REBOTNIX combines high-precision positioning and modern Wi-Fi 6 connectivity in a single, robust module. Through the selection of three powerful RTK-GPS modules, the system can be optimally adapted to diverse requirements. This makes it the ideal solution for demanding industrial, mobile, and outdoor applications where precision, stability, and flexibility are critical.

Compliance & Certifications

The WLAN & RTK-GPS Add-On is CE and FCC compliant, meeting the applicable regulatory requirements for use in industrial and commercial environments.
