Description
The GUSTAV MINI GMSL System is a complete, field-proven edge AI platform designed for teams that want to deploy computer vision in vehicles, robots, or outdoor environments without integration effort. Both GMSL2 cameras are pre-connected and validated with the GUSTAV MINI carrier board—the system is delivered as a fully tested unit, not a collection of components. IP69K-rated cameras provide protection against dust, high-pressure water, and automotive EMC conditions, while the global shutter ensures distortion-free capture of fast-moving objects at 60 FPS. The entire software stack—JetPack 6.x, CUDA, TensorRT, and DeepStream—is pre-installed and ready to use. Your own AI model can be deployed immediately without additional configuration.
GMSL2 (Gigabit Multimedia Serial Link 2) is the same camera standard used in production ADAS systems by automotive OEMs. A single thin coaxial cable per camera transmits up to 6 Gbps of video data and power over coax, enabling camera placement up to 15 meters away from the compute unit without additional cabling infrastructure. The system can optionally be expanded with a GPS module (centimeter-level positioning via RTK correction), an LTE module (real-time data transmission), or a combined GPS+LTE module. All add-ons are supplied with antennas and connection cables.
All processing is performed entirely on local hardware—no cloud required. The Jetson Orin NX delivers up to 100 TOPS of AI compute for real-time inference and runs CUDA, TensorRT, and DeepStream out of the box. With an input voltage range of 9–60V DC and an operating temperature range of –20°C to +88°C, the system is compatible with 12V passenger vehicles, 24V trucks, and 48V industrial power systems—without the need for an external converter.
APPLICATIONS

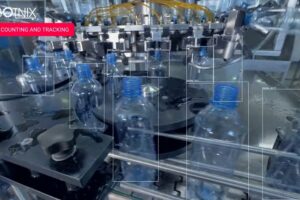

In quality inspection:
The system captures and analyzes surfaces, components, and products in real time—for crack and defect
detection, completeness checks, and dimensional inspection. With up to 100 TOPS of AI compute performance, inference
models run directly on the device without cloud connectivity and without latency caused by external servers
In robotics:
Two GMSL2 cameras enable stereo vision and 3D depth estimation for autonomous mobile robots (AMRs) and automated guided vehicles (AGVs). The global shutter prevents rolling shutter artifacts during fast motion. The coaxial cable transmits image data and power over distances of up to 15 meters—ideal for large robots with physically separated compute units and camera mounting positions.

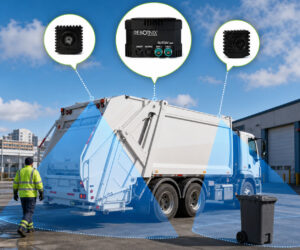

In vehicles:
The system is suitable for surround-view camera systems in commercial vehicles, blind spot detection in
trucks and buses, and AI-based analysis of camera data directly inside the vehicle. Thanks to its wide input voltage
range (9–60V DC), it is compatible with 12V passenger cars, 24V trucks, and 48V industrial vehicles. For permanently
installed in-vehicle use with connection to the onboard power system, R10 certification of the complete system by the
integrator is required.
SCOPE OF DELIVERY
– GUSTAV MINI system
– NVIDIA Jetson Orin NX 16GB
– 2× D3 GMSL2 cameras
– 2× GMSL2 coaxial cables

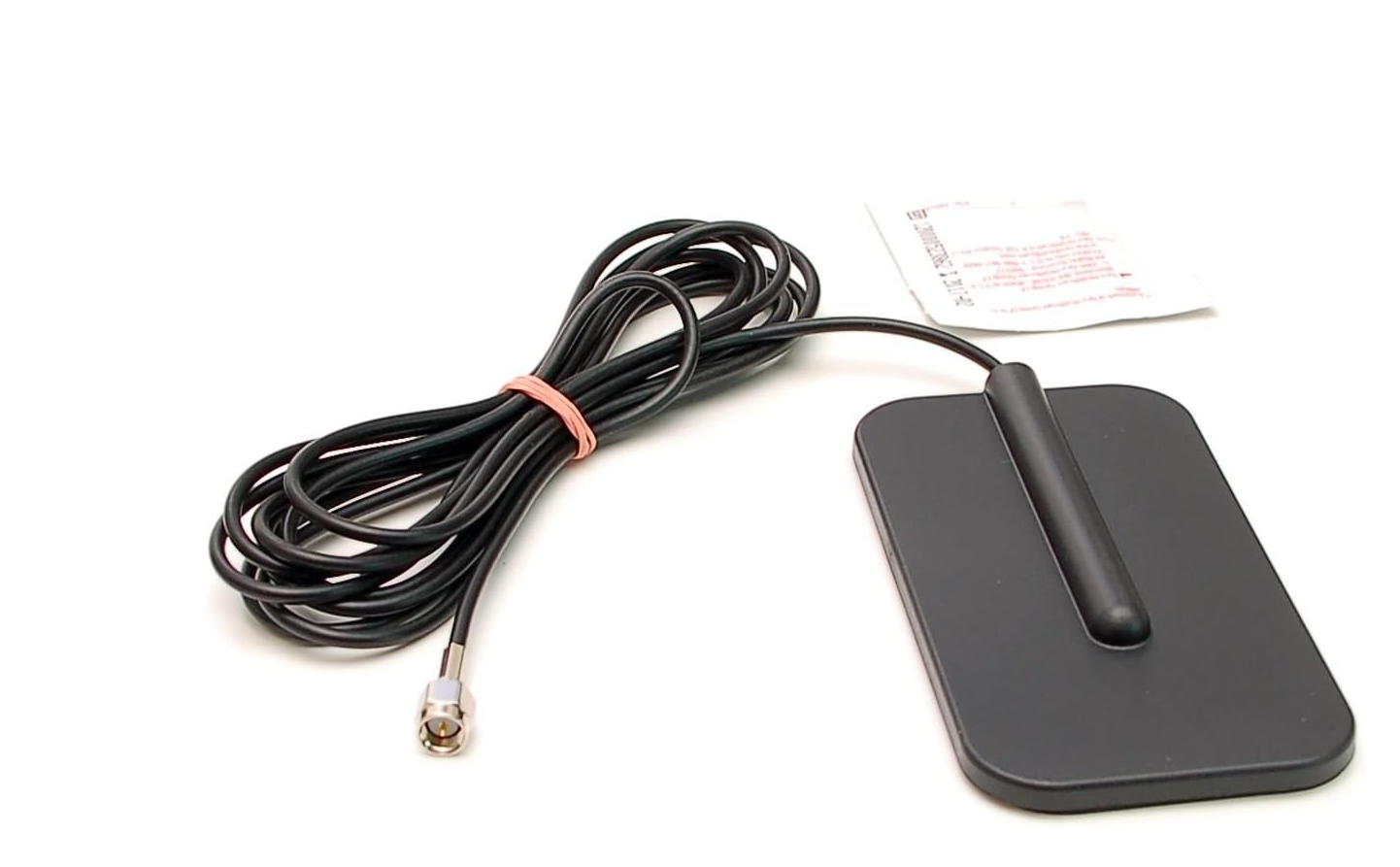

– Wi-Fi module incl. antenna
– Power supply
– Pre-installed software (CUDA, TensorRT, DeepStream) on 1 TB NVMe SSD
OPTIONAL ADD-ONS

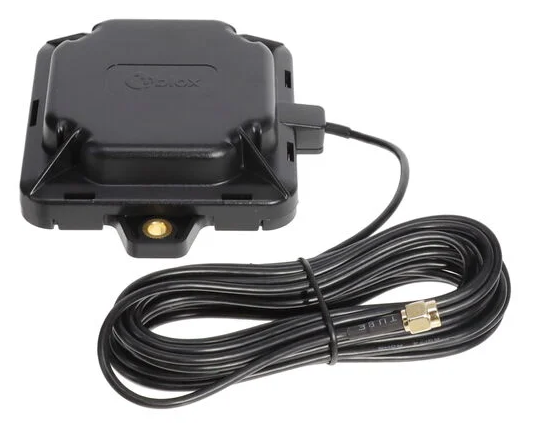

– GPS package: GPS add-on module incl. connection cable + GPS antenna
– LTE package: LTE add-on module incl. connection cable + LTE antenna
TECHNICAL SPECIFICATIONS
GUSTAV MINI
– Module: NVIDIA Jetson Orin NX 16GB
– AI Performance: 100 TOPS
– Memory: 16 GB LPDDR5
– Enclosure: Black anodized solid aluminum
– Ethernet: 1× 1GbE (M12 industrial connector)
– USB/UART: Combo port – 1× USB 2.0, 1× UART
– GMSL2 Inputs: 2× (automotive standard, up to 15 m coaxial cable)
– CAN: ✓
– I2C / UART / GPIO: ✓
– M.2 Key M (NVMe): 1 TB
– Crypto Chip: ✓ (256-bit hardware security)
– HDMI: No (headless)
– Input Voltage: 9–60V DC (12V passenger car / 24V truck / 48V industrial)
– Power Consumption: 10W – 40W (configurable)
– Weight: ~700 g
– Operating Temperature: –20°C to +88°C (system)
– Operating System: Pre-installed (CUDA, TensorRT, DeepStream)
GMSL CAMERA
– Camera: D3 GMSL2 (×2, included)
– Image Sensor: ON Semiconductor AR0234
– Resolution: 1920 × 1080 @ 60 FPS
– Shutter: Global shutter
– Field of View: Medium (2.80 mm focal length)
– Output: GMSL2, up to 6 Gbps per channel
– Connector: FAKRA Z code (coaxial)
– Power Supply: Power over Coax, 12V / ~4.6W per port
– Protection Rating: IP69K
– Certification: AEC-Q100 Grade 2
– Dimensions: 31 × 31 × 45.5 mm
– Weight: 80 g (per unit)
– Operating Temperature: –40°C to +85°C
Each developer board comes with access to a trial license for Iron Link — our performance vision software for computer vision, powered by hardware accelerators such as PVA, VIC, or CUDA. Are you a board developer? Request your personal Iron Link trial license and explore the full potential of accelerated computer vision on your hardware.
Learn more & request your license at: https://rebotnix.com/ironlink
AI Software & Solutions
From board to finished application: REBOTNIX offers individual board customizations, tailored AI software, and enclosures made of aluminum or plastic with custom enclosure branding for orders of 25 units or more – all from a single source, precisely tailored to your needs. Get in touch with us!
