RTK GPS Station – High-Precision GNSS Positioning System
The RTK GPS Station by REBOTNIX delivers centimeter-accurate positioning data as a local reference point – for autonomous vehicles, robots, drones, and construction or agricultural machinery requiring precise navigation without external service providers. Once installed, it permanently supplies all systems within range with correction data – without cloud dependency, without ongoing subscription costs.
(AI software available separately – contact us to find the right solution for your application).
Smart City & Verkehrsmonitoring</
Stationary reference point for high-precision positioning in traffic analysis and autonomous urban mobility. Integration into local edge AI infrastructures via Ethernet – without external correction service providers.
Robotikflotten & Autonome Systeme For autonomous vehicles, robots, and drones requiring centimeter-accurate positioning data. RTK correction data reliably compensates for atmospheric interference – even under difficult reception conditions.

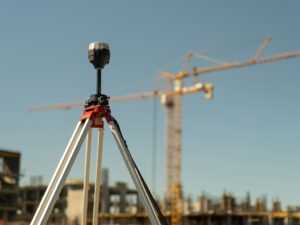

Surveying & ConstructionRobust base station for topographic surveys and machine control on construction sites. Once installed, it permanently delivers centimeter-accurate correction data for all rovers within range.

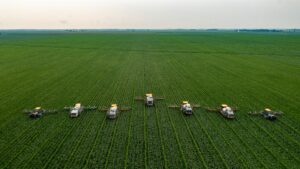

Precision Agriculture & Fleet ManagementFor tractors, harvesters, and spray drones requiring centimeter-accurate control in the field – fully local, independent of commercial correction networks and their subscription costs.
GNSS & Positioning
- Centimeter-accurate RTK-GNSS positioning
- Supported systems: GPS, GLONASS, Galileo, BeiDou, QZSS
- Update rate: up to 30 Hz
- Independent of commercial correction networks
Computing Platform & Connectivity
- ARM64 processor onboard
- Optional integration: NVIDIA Jetson Orin Nano / Orin NX
- 1× RJ45 GbE for network connectivity
- N-connector antenna port (GNSS antenna included)
- Power supply: 230 V AC, max. 20 W
Technical Specifications
- Station dimensions: 269 × 239 × 81 mm · Weight: 2,800 g
- Antenna dimensions: 166 × 87 mm · Weight: 600 g
- Operating temperature: -20 °C to 85 °C
