Description

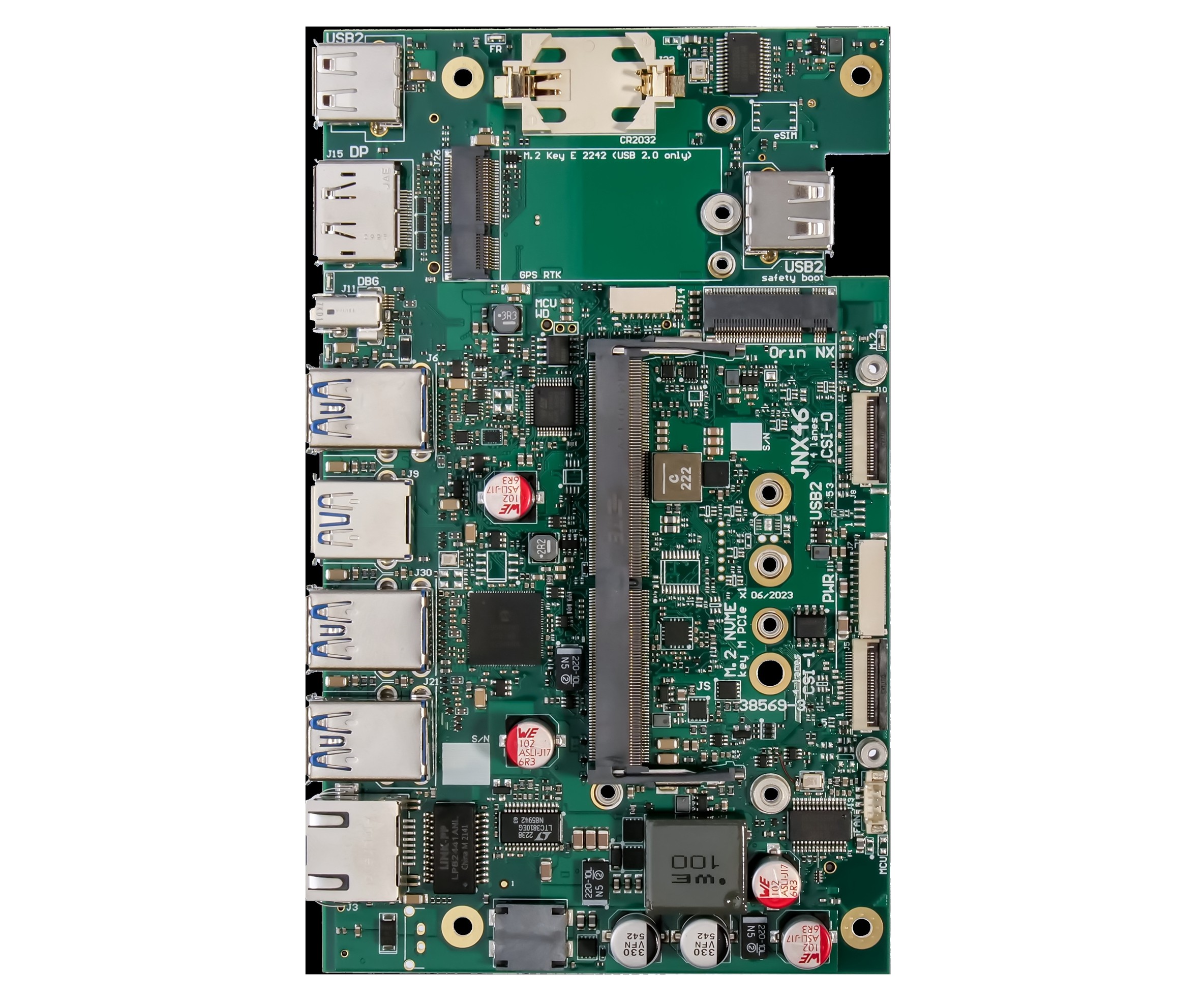

Compact and powerful carrier board for autonomous applications – optimized for the NVIDIA Jetson Orin Nano, Orin NX modules. With 7× USB 3.0, DisplayPort 8Kp30, dual NVMe SSD slots, and comprehensive vehicle integration.
Use Cases
– Autonomous Vehicles & Mobile Systems
– Industrial Automation & Process Monitoring
– Robotics & Autonomous Systems
– Smart City & Infrastructure Monitoring
Technical Specifications
– Compatible Modules: NVIDIA Jetson Orin Nano, Orin NX, Xavier NX
– Dimensions: 158 × 94.7 mm
– Power Supply: 12-30 V DC (automotive compatible)
– Optional: Molex MicroFit power connector, 3-pin Harting
– USB: 7× USB 3.0 (2× native + 5× via hub), 10 Gbit/s hub
– USB 2.0: 4-port hub + 1× external Type-A + 1× internal (Safety Boot)
– Camera: 2× CSI-2 (4 lanes each)
– Display: 1× DisplayPort (up to 8Kp30)
– Network: 1× Gigabit Ethernet
– Storage: 2× M.2 NVMe SSD (primary PCIe x4, secondary PCIe x1)
– LTE: Mini PCIe with SIM / M.2 Key B 3042/3052 with Nano SIM or eSIM
– GPS: M.2 Key E 2242
– GPIO: 12-pin Harting: 4× input, 2× output, RS485, CAN
– MCU: Yes, with 5× UART, Watchdog
– Power Measurement: 12 channels (USB, Jetson, 3.3 V)
– RTC: CR2032 lithium battery
– Service Port & Service Box (Debugging): IX connector (available separately
Each developer board comes with access to a trial license for Iron Link — our performance vision software for computer vision, powered by hardware accelerators such as PVA, VIC, or CUDA. Are you a board developer? Request your personal Iron Link trial license and explore the full potential of accelerated computer vision on your hardware.
Learn more & request your license at: https://rebotnix.com/ironlink
AI Software & Solutions
From board to finished application: REBOTNIX offers individual board customizations, tailored AI software, and enclosures made of aluminum or plastic with custom enclosure branding for orders of 25 units or more – all from a single source, precisely tailored to your needs. Get in touch with us!
