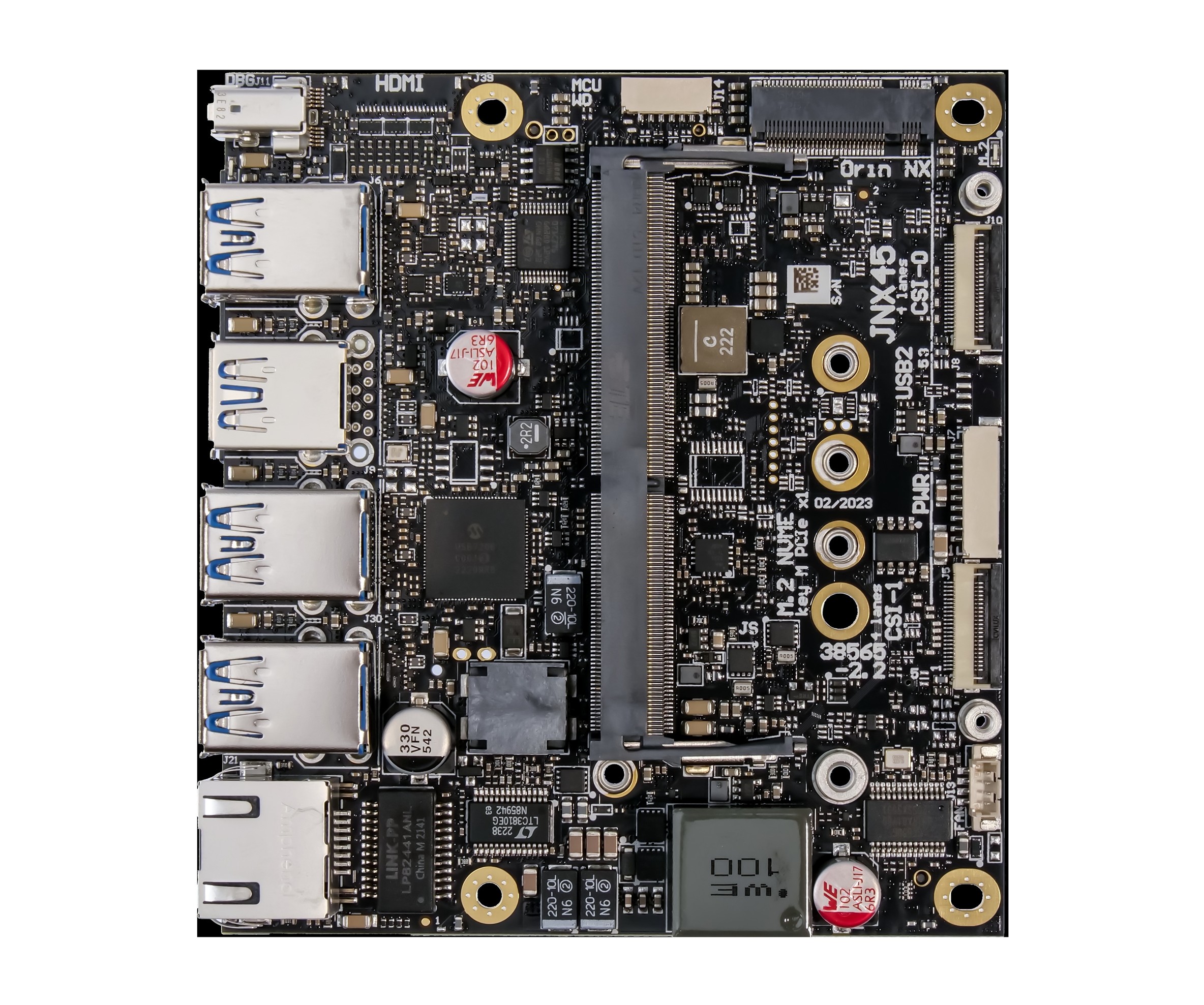

JNX45 – NANO & ORIN NX

Description

Complete evaluation system in industrial quality for the NVIDIA Jetson Orin Nano and Orin NX modules – with 7× USB 3.0, integrated MCU, 12-channel power measurement, and comprehensive system management. Ready to use immediately for edge AI applications.

Use Cases
– Robotics & Autonomous Systems
– Industrial Image Processing & Quality Control
– Security & Surveillance
– Mobile Platforms & Vehicle Applications

Technical Specifications
– Compatible Modules: NVIDIA Jetson Orin Nano, Orin NX, Xavier NX
– Power Supply: 12–30 V DC
– Camera: 2× CSI-2 (4 lanes each)
– USB: 7× USB 3.2 (2× native + 5× via hub), 10 Gbit/s hub
– Power Measurement: 12 channels (USB, Jetson, 3.3 V)
– MCU: Yes, with 5× UART
– UART Channels: Jetson Console, User UART, LTE UART, WiFi UART, MCU Console
– Watchdog: Yes (automatic system restart)
– 2x M.2 NVME SSD

Each developer board comes with access to a trial license for Iron Link — our performance vision software for computer vision, powered by hardware accelerators such as PVA, VIC, or CUDA. Are you a board developer? Request your personal Iron Link trial license and explore the full potential of accelerated computer vision on your hardware.

Learn more & request your license at: https://rebotnix.com/ironlink

AI Software & Solutions
From board to finished application: REBOTNIX offers individual board customizations, tailored AI software, and enclosures made of aluminum or plastic with custom enclosure branding for orders of 25 units or more – all from a single source, precisely tailored to your needs. Get in touch with us!
