JNX40S – NANO & ORIN NX

Description

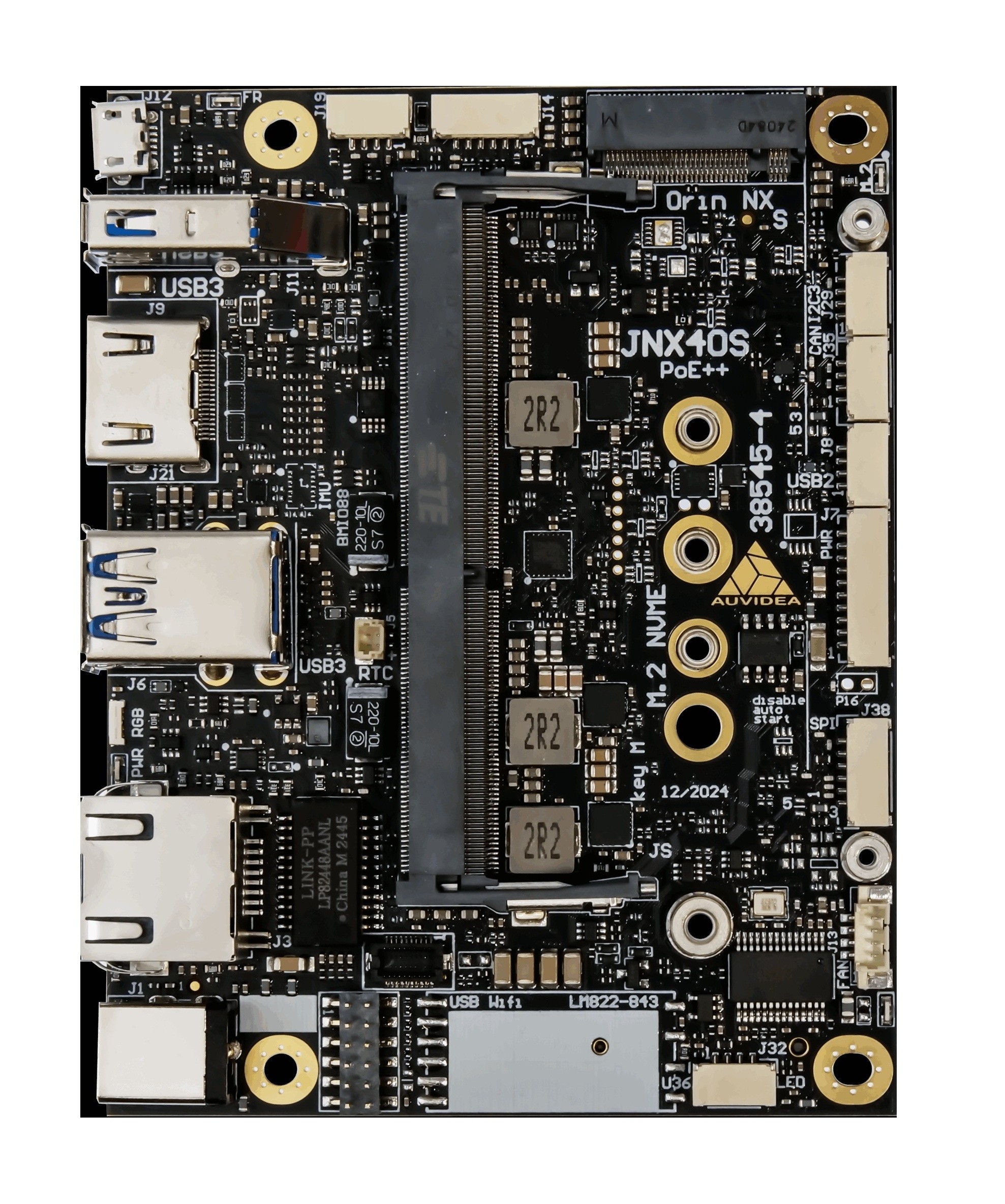

The JNX40S is a compact and capable carrier board for NVIDIA Jetson Orin Nano and Orin NX modules. With four vertical CSI-2 connectors (2 lanes each), it provides flexible multi-camera connectivity for industrial image processing, surveillance, and autonomous systems. The 40W Super Mode from JetPack 6.2 unlocks the full computing power of the Jetson module for demanding AI inference at the edge.

Connectivity is covered by Gigabit Ethernet via RJ45 or JST-GH (10-pin) with level shifters, 3× USB 3.x, and HDMI 2.0 up to 4K@60Hz. M.2 slots for WLAN (Key E) and LTE (Key B) along with two dual nano SIM slots support a wide range of wireless configurations. CAN, UART (3.3V), I2C, I2S, and SPI are available for IoT and sensor integration. PoE up to 72 W (802.3bt) can be added optionally via external modules – ideal for network-powered installations without a separate power supply.

Use Cases
– Industrial Image Processing & Quality Control
– Robotics & Autonomous Systems
– Security & Surveillance
– Mobile Platforms & Vehicle Applications

Technical Specifications
– Compatible Modules: NVIDIA Jetson Orin Nano, Orin NX
– Camera: 2× CSI-2 (4 lanes each)
– USB: 3× USB 3.0 Type-A (Orin NX) / 1× USB 3.0 Type-A (Orin Nano)
– USB 2.0: 2× Type-A + 1× Micro USB (Flashing)
– CAN: Yes
– PCIe: 1× PCIe x1
– Storage: M.2 Key M NVMe SSD (depending on variant)
– LTE: M.2 Key B (optional dual SIM)
– Power Supply: 12 V DC (optional 12-48 V with module 38515)
– PoE PD: Optional (additional module required)
– UART: 3.3 V (level shifter 70202 available separately)
– Design: Developed and manufactured in Germany

Each developer board comes with access to a trial license for Iron Link — our performance vision software for computer vision, powered by hardware accelerators such as PVA, VIC, or CUDA. Are you a board developer? Request your personal Iron Link trial license and explore the full potential of accelerated computer vision on your hardware.

Learn more & request your license at: https://rebotnix.com/ironlink

AI Software & Solutions
From board to finished application: REBOTNIX offers individual board customizations, tailored AI software, and enclosures made of aluminum or plastic with custom enclosure branding for orders of 25 units or more – all from a single source, precisely tailored to your needs. Get in touch with us!
