X230D-AI – AGX ORIN

Description

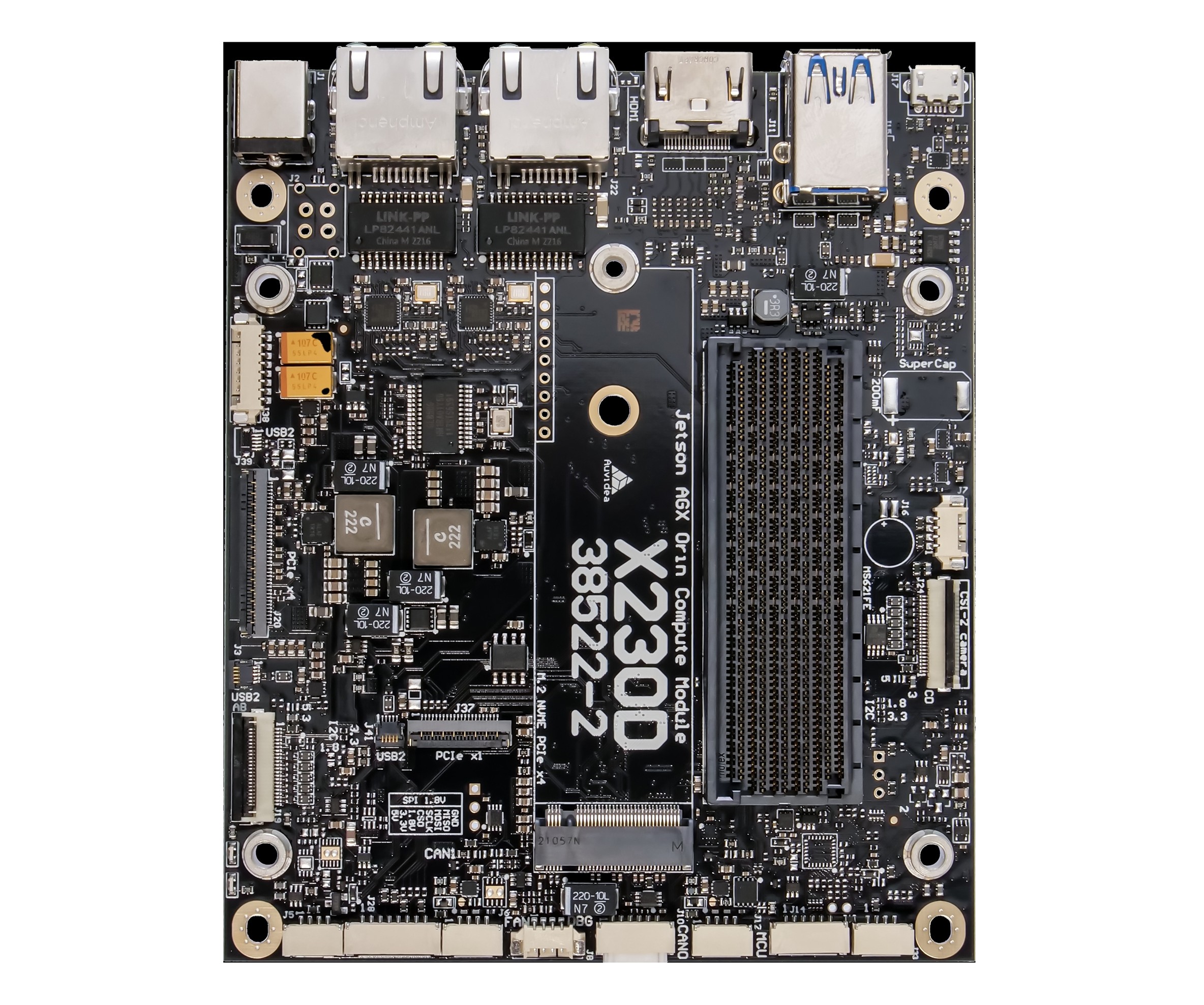

The X230D-AI is an industrial-grade carrier board for NVIDIA Jetson AGX Orin (Config 2) supporting power modes from 15W to 60W. The two CSI-2 interfaces (4 lanes each, 22-pin) support a wide range of camera sensors – including Raspberry Pi camera modules, ArduCam, Vision Components, Framos, Basler, Allied Vision, and FPD-Link III sensors – making it the first choice for industrial image processing and inspection applications.

For flexible system expansion, two FPC-based PCIe connectors are available: PCIe x1 (22-pin, J37) and PCIe x4 (40-pin, J20) – ideal for GbE or 10GbE adapters and other PCIe expansion cards. An M.2 Key M 2280 NVMe slot (PCIe x4) provides fast local storage. Network connectivity is delivered by two Gigabit Ethernet ports (RTL8111), complemented by HDMI, 2× USB 3.1 Type-A, and USB 2.0 (Micro, OTG). CAN with integrated transceiver as well as an RX/TX line pair, 2× I2C, and UART enable direct connection of sensors and controllers.

The ATSH204A crypto chip protects software investments through hardware-based key storage. MCU and auto-flashing simplify board management and commissioning. The 12–19V operating voltage and flat bottom side (standard: top-side populated only) facilitate integration into compact enclosures. Overvoltage protection, reverse polarity protection, and a 200mF RTC supercapacitor ensure reliable continuous operation.

Use Cases
– Industrial Image Processing & Quality Control
– Robotics & Autonomous Systems
– Security & Critical Infrastructure
– Research & Development

Technical Specifications
– Compatible Module: NVIDIA Jetson AGX Orin (Config 2)
– Power Modes: 15 W – 60 W
– Operating Voltage: 12–19 V
– Dimensions: 125 × 104.6 mm
– HDMI: 1×
– USB 2.0: 1× micro, OTG
– USB 3.1: 2× type A
– GbE: 2× RJ45 (RTL8111 PCIe to GbE)
– PCIe x1: 1× FPC 22-pin
– PCIe x4: 1× FPC 40-pin
– M.2: 1× Key M 2280 NVMe (PCIe x4)
– CAN: 1× with transceiver; 1× RX/TX
– UART: 1×
– I2C: 2×
– CSI-2: 2× (4 lanes each, 22-pin)
– MCU: available
– Crypto chip: ATSH204A
– Autoflashing: available
– Debug port: available
– Fan connector: 1× (12V, PWM)
– RGB LED: available (GPIO-controlled)
– RTC: optional (MS621FE), supercap 200 mF
– Overvoltage protection: available
– Reverse polarity protection: availabl
