JNX41S – NANO & ORIN NX

Description

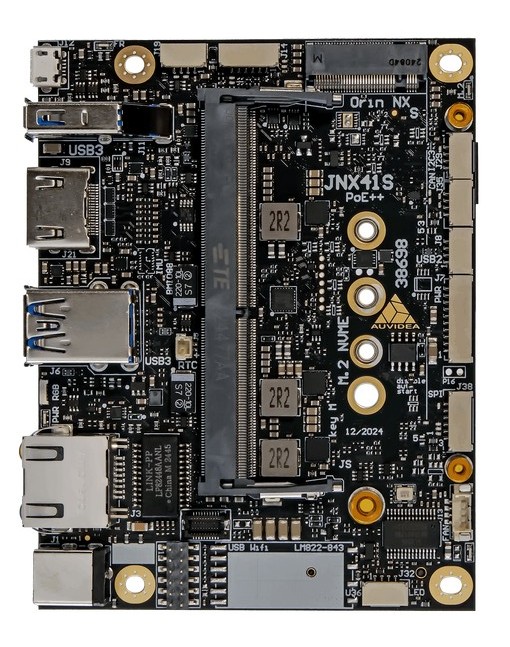

The JNX41S is a compact carrier board for NVIDIA Jetson Orin Nano and Orin NX modules, designed for high-resolution camera applications and flexible peripheral connectivity. The two vertical CSI-2 connectors with 4 lanes each deliver full bandwidth for high-resolution sensors – ideal for quality control, inspection, and machine vision with demanding camera systems.

GPIO options are particularly flexible: 2 GPIOs are available natively, with up to 7 GPIOs accessible via optional expansion. Connectivity is provided by Gigabit Ethernet via RJ45 or JST-GH (10-pin) with level shifters, 3× USB 3.0, and HDMI 2.0 up to 4K@60Hz. M.2 slots for WLAN (Key E) and LTE (Key B) enable wireless integration. Optional PoE up to 72 W (802.3bt) via external modules also makes the board suitable for network-powered installations. The 40W Super Mode from JetPack 6.2 unlocks the maximum AI computing performance of the Jetson module.

Use Cases
– Industrial Image Processing & Quality Control
– Robotics & Autonomous Systems
– Security & Surveillance
– Mobile Platforms & Vehicle Applications

Technical Specifications
– Compatible Modules: NVIDIA Jetson Orin Nano, Orin NX
– Super Mode: 40 W (from JetPack 6.2)
– Camera: 2× vertical CSI-2 (4 lanes each)
– GPIO: 2× native or 7× via expansion
– USB: 3× USB 3.0
– Display: HDMI 2.0 (up to 4Kp60)
– Storage: M.2 2280 Key M NVMe SSD
– WLAN/LTE: M.2 Key E (PCIe + USB 2.0) / M.2 Key B (USB 2.0)
– Network: GbE via RJ45
– PoE: Optional via external modules

Each developer board comes with access to a trial license for Iron Link — our performance vision software for computer vision, powered by hardware accelerators such as PVA, VIC, or CUDA. Are you a board developer? Request your personal Iron Link trial license and explore the full potential of accelerated computer vision on your hardware.

Learn more & request your license at: https://rebotnix.com/ironlink

AI Software & Solutions
From board to finished application: REBOTNIX offers individual board customizations, tailored AI software, and enclosures made of aluminum or plastic with custom enclosure branding for orders of 25 units or more – all from a single source, precisely tailored to your needs. Get in touch with us!
