X230-AI – AGX ORIN

Description

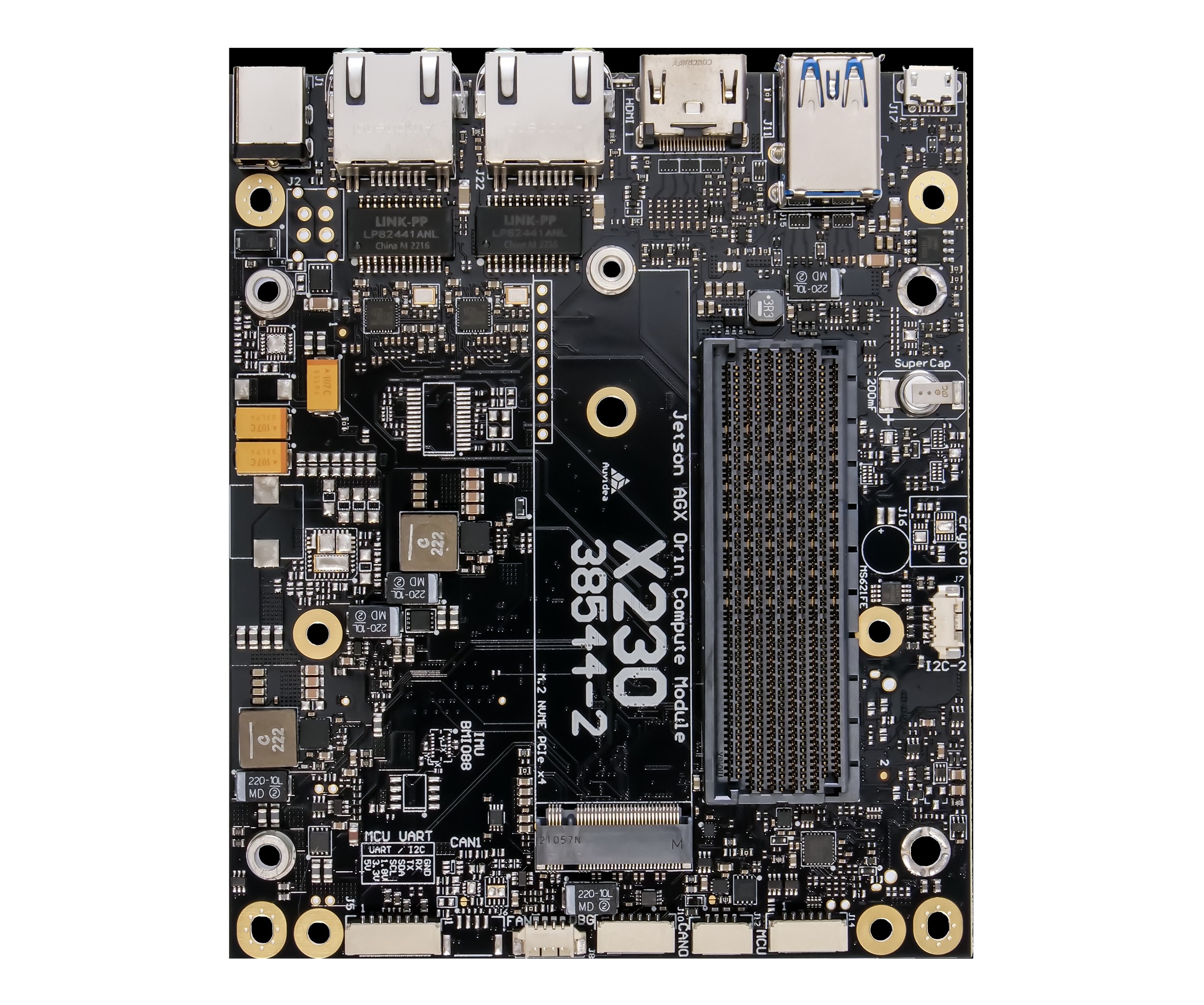

The X230 is a high-performance carrier board for NVIDIA Jetson AGX Orin, purpose-built for multi-camera applications and flexible industrial deployments. The dedicated CSI-2 expansion connector supports simultaneous operation of up to 8 cameras, making the board the first choice for machine vision, quality inspection, and autonomous systems.
The flexible expansion port with PCIe x4/x1, USB, UART, and GPIOs enables straightforward integration of project-specific peripherals without additional adapter boards. For wireless connectivity, up to two LM823 WiFi modules can optionally be integrated. An M.2 NVMe PCIe x4 slot and a UFS/SD card slot offer flexible storage options for varying requirements.
Network connectivity is provided by two Gigabit Ethernet ports, complemented by HDMI, 2× USB 3.0, USB 2.0, as well as UART, I2C, and I2S for sensor and peripheral connections.

Use Cases
– Industrial Image Processing & Multi-Camera Systems
– Robotics & Autonomous Systems
– Security & Critical Infrastructure
– Research & Development

Technical Specifications
– Compatible Module: NVIDIA Jetson AGX Orin
– Network: 2× Gigabit Ethernet
– USB: 2× USB 3.0 + 1× USB 2.0
– Display: 1× HDMI
– Storage: M.2 NVMe PCIe x4
– Removable Media: UFS/SD card
– Camera: CSI-2 expansion connector (up to 8 cameras)
– Expansion: PCIe x4/x1, USB, UART, GPIOs
– Interfaces: UART, I2S, I2C
– WiFi: Optional up to 2× LM823 WiFi module
– Design: Developed and manufactured in Germany

Each developer board comes with access to a trial license for Iron Link — our performance vision software for computer vision, powered by hardware accelerators such as PVA, VIC, or CUDA. Are you a board developer? Request your personal Iron Link trial license and explore the full potential of accelerated computer vision on your hardware.

Learn more & request your license at: https://rebotnix.com/ironlink

AI Software & Solutions
From board to finished application: REBOTNIX offers individual board customizations, tailored AI software, and enclosures made of aluminum or plastic with custom enclosure branding for orders of 25 units or more – all from a single source, precisely tailored to your needs. Get in touch with us!
