D3 GMSL CAMERA

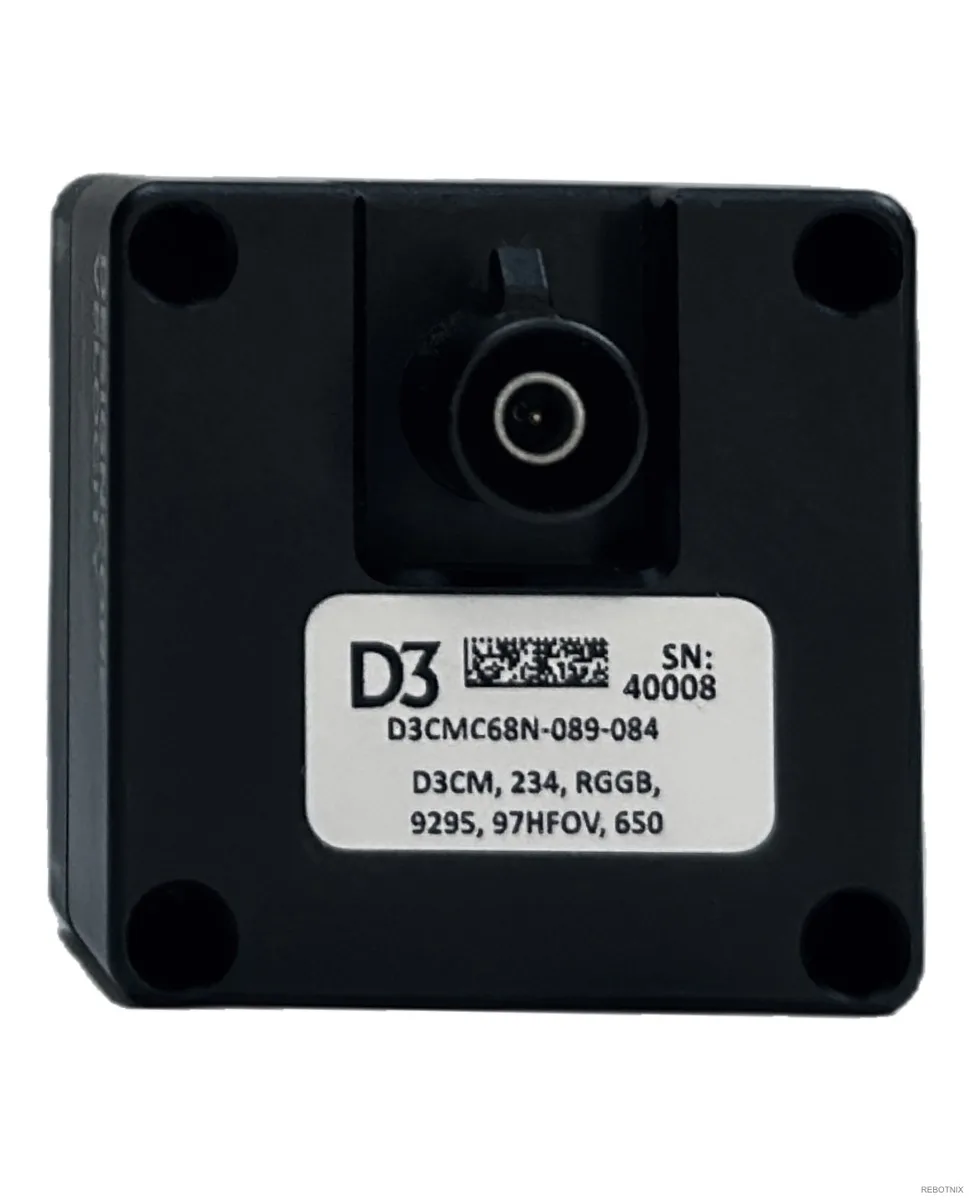

GMSL CAM-D3 AR0234 – High-Performance GMSL Camera for Autonomous Systems and Industrial Vision

The GMSL CAM-D3 from REBOTNIX is a powerful industrial and automotive camera specifically designed for demanding computer vision applications in autonomous vehicles, mobile robotic systems, and smart automation environments. The camera delivers Full HD resolution of 2.3 MP (1920 × 1200 px) with excellent image quality and precise motion capture.

Excellent Image Quality with Global Shutter

The global shutter sensor used enables the capture of even fast movements without distortion or rolling shutter artifacts – a critical advantage in highly dynamic scenes such as road traffic, robotic navigation, or machine processes. The high light sensitivity and image processing ensure clear, sharp images even in difficult lighting conditions.

Industrial-Grade Design for Extreme Operating Conditions

The CAM-D3 is designed for operation in harsh environments and meets high protection requirements:

• IP69K protection rating for complete dust and high-pressure water resistance
• Wide operating temperature range from –40 °C to +85 °C for extreme conditions
• Automotive quality (AEC-Q100 conformity, Grade 2) for use in vehicle and mobility applications

These features make it the ideal choice for outdoor, vehicle, or industrial vision solutions.

Modern GMSL2 Connectivity

With GMSL2 (Gigabit Multimedia Serial Link) interface technology, the camera achieves transmission rates of up to 6 Gbps over a single coaxial cable – including signal and power supply. GMSL2 provides a robust, interference-free connection that is particularly suitable for longer cable runs and complex multi-camera systems.

Optimized for Autonomous Mobility and Robotics

The CAM-D3 is excellently suited for:

• Perception and environmental awareness in autonomous vehicles
• Multi-camera vision setups for surround view and scene analysis
• Industrial robotics with real-time image processing
• Quality and process control in production environments

Thanks to the high image quality, global shutter, and GMSL2 transmission, the camera provides a stable foundation for AI-powered analysis and control applications.

Technical Highlights

• Sensor: onsemi® AR0234 2.3 MP (1920 × 1200 px)
• Shutter: Global shutter for distortion-free image capture
• Interface: GMSL2 up to 6 Gbps
• Protection rating: IP69K for highest environmental resistance
• Operating temperature: –40 °C to +85 °C
• Automotive quality: AEC-Q100 (Grade 2) for high reliability

With its combination of robust hardware, high dynamic range, global shutter technology, and industrial-grade construction, the GMSL CAM-D3 AR0234 from REBOTNIX is a future-proof camera for professional computer vision projects in mobility, robotics, and industry.

Compliance & Certifications

The GMSL CAM-D3 AR0234 is CE and FCC compliant, meeting the applicable regulatory requirements for use in industrial, automotive, and commercial environments.
