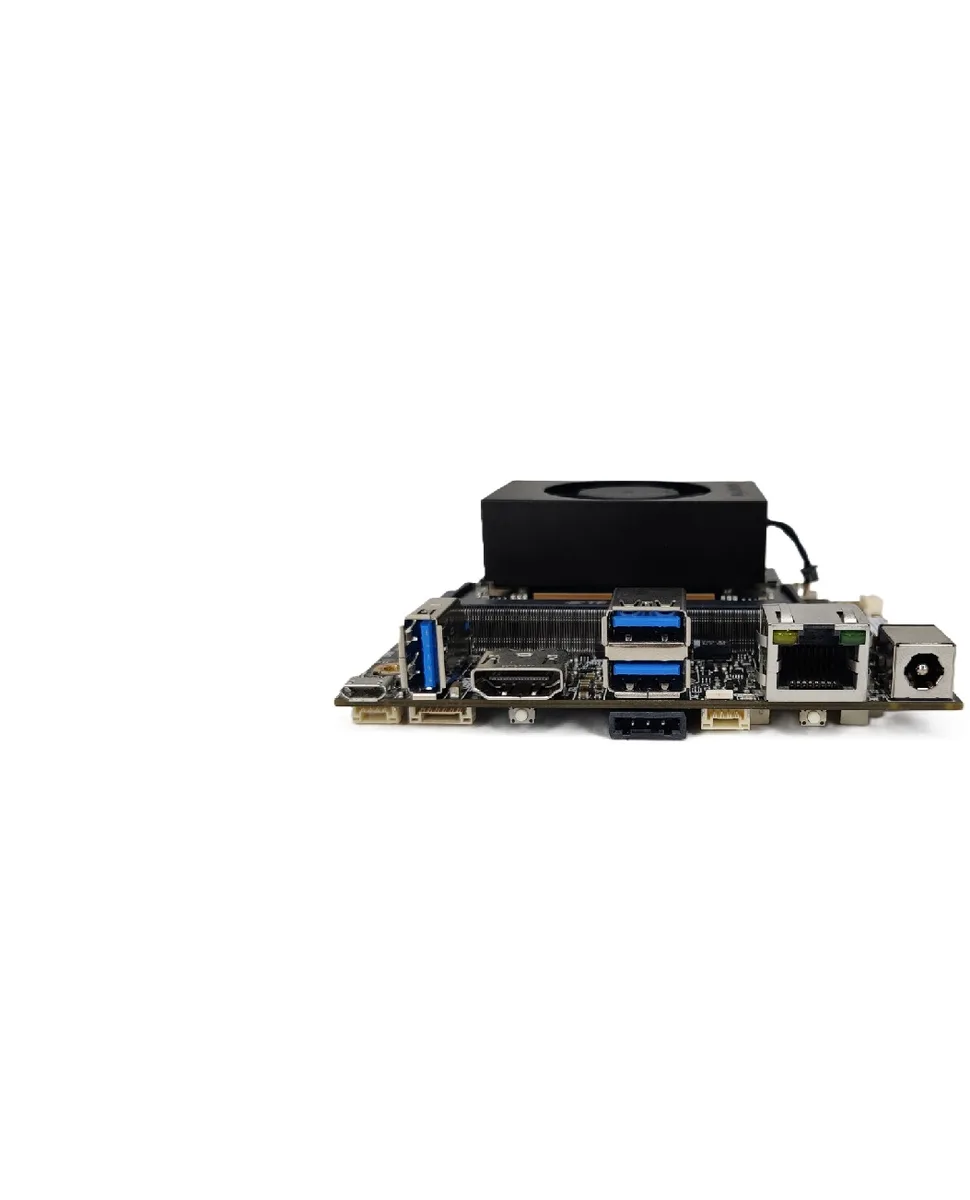

DEV-SYSTEM JNX41S (2x4Line CSI-2, SuperMode)

The JNX41S Developer System is the ideal choice for applications where two cameras must operate with maximum signal quality and the highest data throughput. Compared to the JNX40S (4× 2-lane), the JNX41S uses two CSI-2 ports with 4 lanes each—delivering full bandwidth for high-resolution industrial cameras, ToF sensors, or low-latency stereo camera setups.

The key difference: the 4-lane configuration of the JNX41S frees up pins otherwise used for CSI-2, making 2 native GPIO pins available—expandable to up to 7 GPIOs via an optional I²C GPIO expander. This flexibility enables direct control of actuators, LEDs, relays, or external trigger signals without requiring additional microcontroller hardware.

With 157 TOPS of AI performance in Super Mode (JetPack 6.2) and 102 GB/s memory bandwidth, the system processes high-resolution camera streams and complex AI models in real time. Optional PoE input up to 72W (802.3bt) eliminates the need for separate power cables—ideal for decentralized installations in buildings or vehicles. Fully pre-flashed with JetPack 6.x, including CUDA, TensorRT, and DeepStream.

TECHNICAL SPECIFICATIONS

• Module: NVIDIA Jetson Orin Nano 8GB | Orin NX 16GB (selectable)
• AI Performance: Nano 8GB: 40 TOPS (Standard) | 67 TOPS (Super Mode) / NX 16GB: 100 TOPS (Standard) | 157 TOPS (Super Mode)
• Memory: Nano 8GB: 8 GB LPDDR5 | NX 16GB: 16 GB LPDDR5
• Carrier Board: JNX41S (Designed & Manufactured in Germany)
• Ethernet: 1× 1GbE (RJ45 or JST-GH with Level Shifter)
• USB 3.x: 3× (10 Gbit/s)
• USB 2.0: 1×
• CSI-2 Ports: 2× 4-Lane – maximum camera bandwidth
• GPIO: 2× native | up to 7× via I²C GPIO expander (optional)
• M.2 Key M (NVMe): 1× 2280 – pre-flashed 128 GB
• M.2 Key E (Wi-Fi/GPS): (PCIe x1 + USB 2.0, 2230 form factor)
• M.2 Key B (LTE/5G): (3042/3052, Dual Nano-SIM)
• SIM Card: 2× Dual-Nano
• PCIe Expansion: 1×
• HDMI: 1× 2.0 (4K@60Hz)
• CAN: 1×
• PoE Input: Optional (15W / 30W / 72W – 802.3af / 802.3at / 802.3bt)
• MCU / Watchdog: ✓
• Crypto Chip: Optional
• Onboard WLAN: Optional (LM822 module)
• Board Dimensions: 80 × 104 mmPower Supply: 12V | 12–48V with optional Molex expansion connector
• Cooling: Heatsink + fan (active)
• Operating System: JetPack 6.x (pre-installed, CUDA, TensorRT, DeepStream)

AI Software & Solutions
From board to finished application: REBOTNIX offers individual board customizations, tailored AI software, and enclosures made of aluminum or plastic with custom enclosure branding for orders of 25 units or more – all from a single source, precisely tailored to your needs. Get in touch with us!
