Compact CAN-AI system with optional LTE/5G remote management, ready to use with preinstalled JetPack.
Multiple variants available. Price depends on configuration, we confirm the variant with the order confirmation.

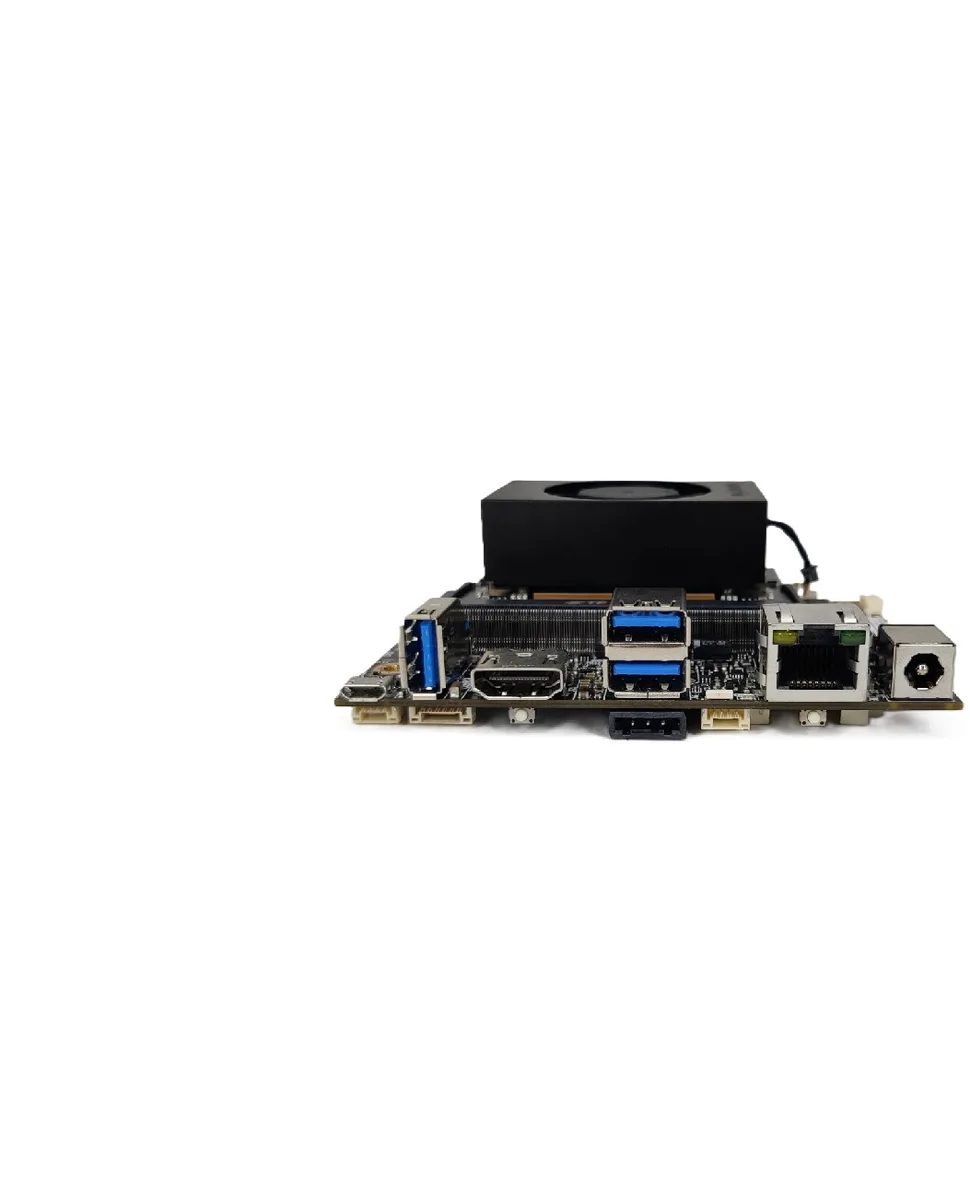

The JNX42 Developer System packs maximum connectivity into the smallest possible form factor. The JNX42 carrier board (80 × 104.6 mm) was designed from the ground up for the native three USB 3.2 ports and three PCIe buses of the NVIDIA Jetson Orin—without compromising bandwidth or latency. Two MIPI CSI-2 interfaces, each with 4 lanes, enable the simultaneous operation of high-quality industrial or automotive cameras, compatible with Raspberry Pi modules, ArduCam, Basler, Allied Vision, and other common sensors.
The CAN bus with TJA1051 transceiver connects the system directly to vehicle and machine networks according to ISO 11898—without the need for an additional CAN adapter. The optional M.2 Key B slot supports LTE/5G modules (dual Nano-SIM), which, in combination with a UART connection to the MCU, enable remote management: watchdog function, power cycling, changes to the boot order, and system control independent of the Linux operating system—even if the system no longer boots.
Pre-flashed with JetPack 6.x (CUDA, TensorRT, DeepStream) and includes a power supply—ready to get started right away.
TECHNICAL SPECIFICATIONS
AI Software & Solutions
From board to finished application: REBOTNIX offers individual board customizations, tailored AI software, and enclosures made of aluminum or plastic with custom enclosure branding for orders of 25 units or more – all from a single source, precisely tailored to your needs. Get in touch with us!
