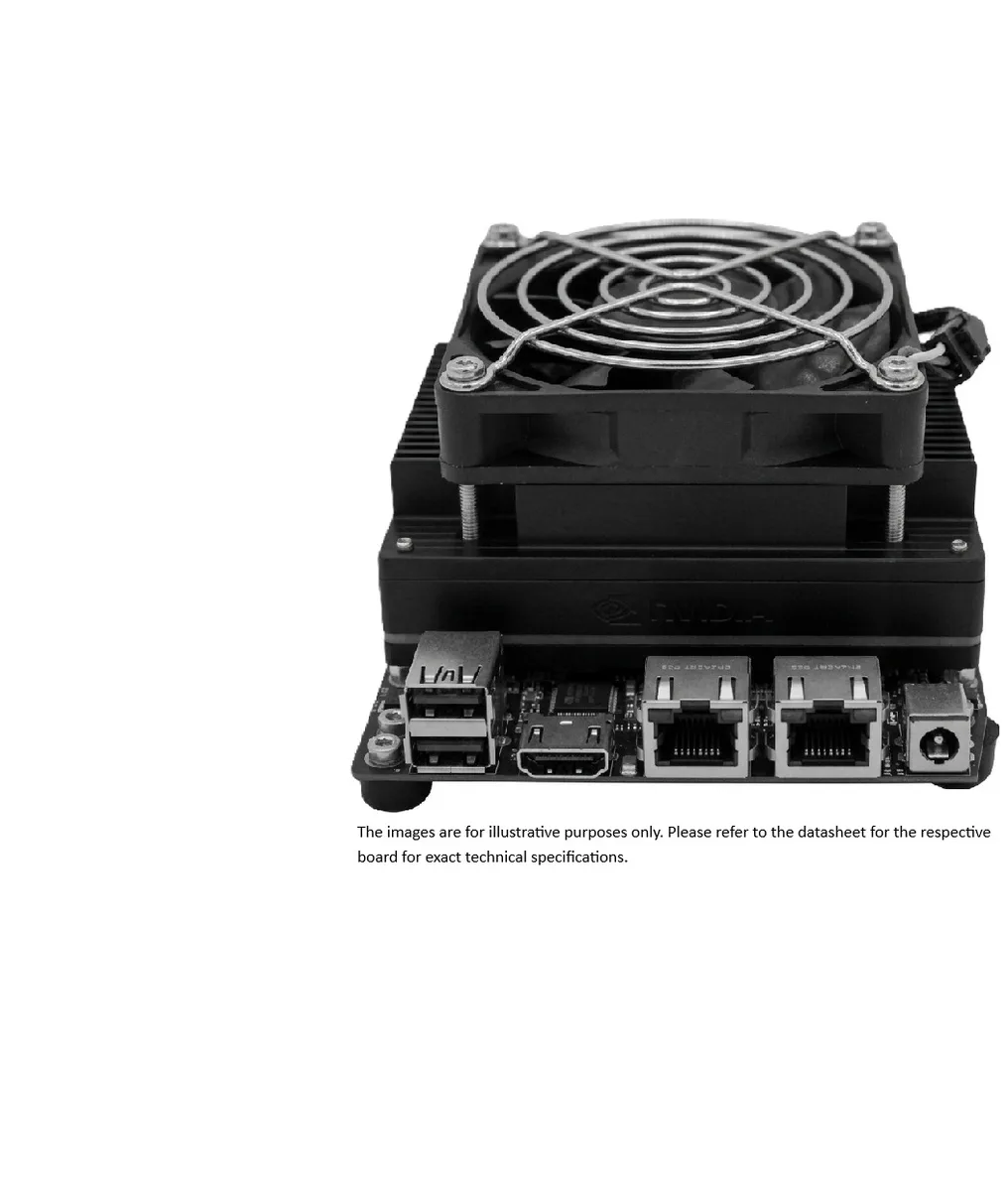

DEV-SYSTEM X230-AI (Up to 8 Cameras, Dual GbE)

The X230 Developer System brings the full performance of the NVIDIA Jetson AGX Orin 64GB to a compact, industrial-grade carrier platform (125 × 104.6 mm). At its core is a flexible CSI-2 expansion interface which—combined with compatible expansion modules—enables the simultaneous operation of up to 8 cameras. This makes the X230 Developer System ideally suited for applications such as multi-camera object detection, 360° environmental sensing in autonomous vehicles, industrial quality inspection with multiple inspection points, or scalable surveillance systems.

The NVIDIA Jetson AGX Orin 64GB delivers up to 200 TOPS of AI performance and supports the full NVIDIA SDK stack: CUDA, TensorRT, DeepStream, cuDNN, VisionWorks, and more. Dual Gigabit Ethernet with separate controllers enables simultaneous connection to multiple network segments—ideal for IT/OT separation in industrial environments.

The integrated MCU handles watchdog functions and system management independently of the operating system. Auto-flashing simplifies commissioning and field updates. Optional dual LM823 Wi-Fi modules extend the system with wireless connectivity. The system is supplied with the AGX Orin 64GB, a pre-flashed 128 GB NVMe SSD (JetPack 6.x), active cooling, and a 12 V power supply.
