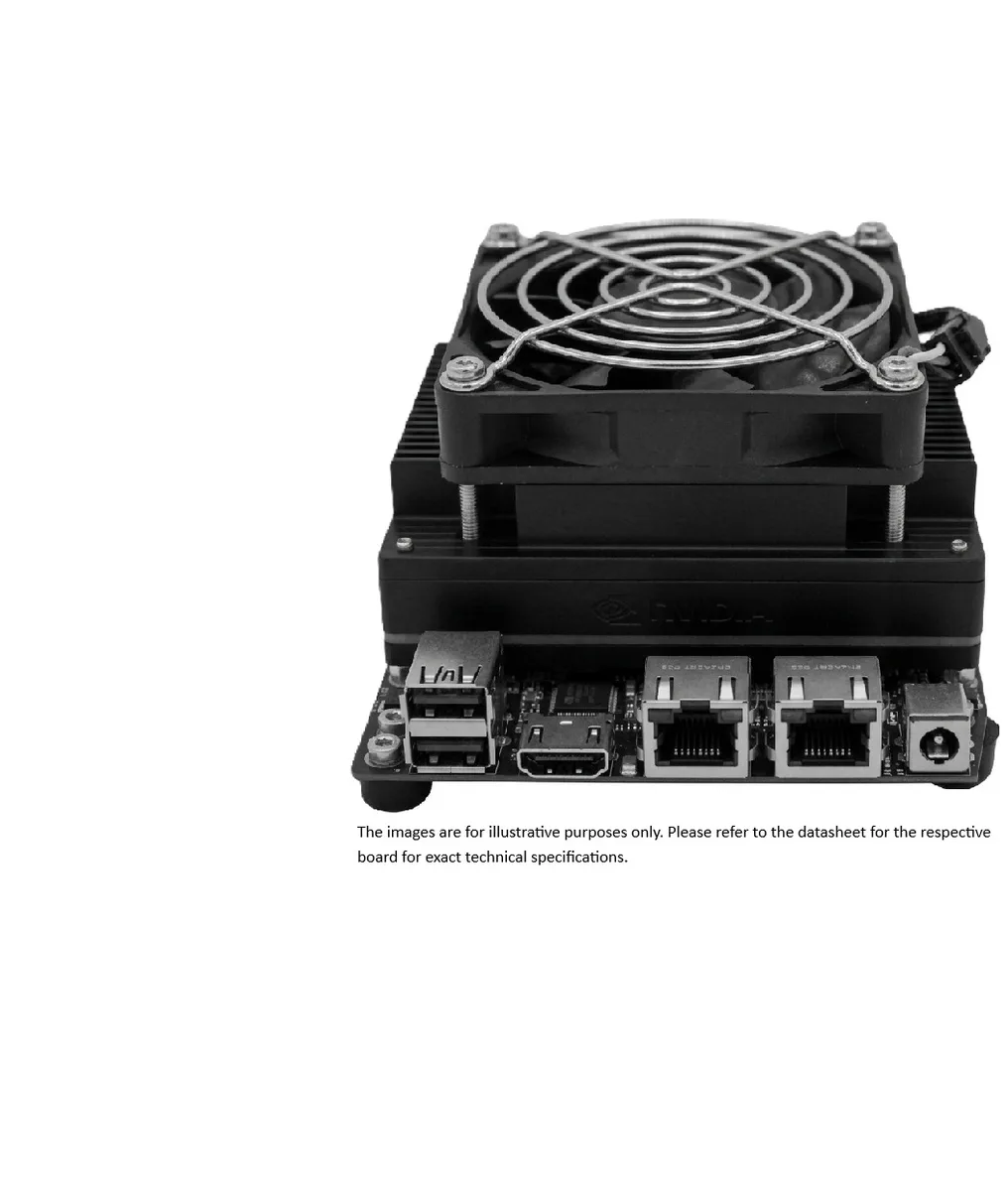

DEV-SYSTEM X230D-AI (Dual CAN, Direct CSI-2)

The X230D Developer System is the industrial-focused variant of the AGX Orin platform. Unlike the X230, the X230D features directly onboard CSI-2 ports (2× 4-lane, 22-pin) as well as two full CAN interfaces for direct integration into vehicle and machine networks according to ISO 11898.

A dedicated hardware crypto chip (ATSHA204A) protects intellectual property and software investments—essential for commercial products and OEM deployments. Together with the integrated MCU, watchdog, and auto-flashing functionality, the X230D provides all prerequisites for robust field operation and simplified commissioning.

The board’s flat bottom design enables space-efficient integration into custom enclosures or cooling plates. PCIe x1 and PCIe x4 FPC expansion connectors provide flexibility for custom extensions, such as additional network interfaces or storage solutions. Two independent Gigabit Ethernet controllers enable IT/OT separation or redundant network connectivity.

TECHNICAL SPECIFICATIONS

• Module: NVIDIA Jetson AGX Orin 64GB
• AI Performance: 275 TOPS
• Memory: 64 GB LPDDR5
• Carrier Board: X230D-AI (Designed & Manufactured in Germany)
• Ethernet: 2× 1GbE (RJ45, RTL8111)
• USB 3.x: 3× USB 3.1
• USB 2.0: 1× Micro OTG
• CSI-2 Ports: 2× 4-Lane (22-pin, directly onboard)
• M.2 Key M (NVMe): 1× 2280 – 128 GB pre-flashed
• M.2 Key E (Wi-Fi/GPS): No
• M.2 Key B (LTE/5G): No
• PCIe Expansion: x1 FPC (22-pin, J37) + x4 FPC (40-pin, J20)
• HDMI: 1× 2.0
• CAN: 2× (1× with TJA transceiver + 1× RX/TX signals)
• UART: 1×
• I2C / I2S / SPI: 2× / – / –
• SIM Card: No
• MCU / Watchdog: ✓
• Crypto Chip: ✓ ATSHA204A (hardware security chip)
• Autoflashing: ✓
• RTC: SuperCap 200mF (integrated) + opt. Li-ion battery
• Onboard WLAN: No
• Fan Connector: ✓ (12V, PWM)
• Debug Port: ✓
• RGB LED: ✓ (GPIO-controlled)
• Reverse Polarity Protection: ✓
• Overvoltage Protection: ✓
• Jetson Power Modes: 15W – 60W
• Board Dimensions: 125 × 104.6 mm
• Power Supply: 12V
• Cooling: AGX Orin heatsink + fan (active, 80×80mm)
• Operating System: JetPack 6.x (pre-installed)

AI Software & Solutions
From board to finished application: REBOTNIX offers individual board customizations, tailored AI software, and enclosures made of aluminum or plastic with custom enclosure branding for orders of 25 units or more – all from a single source, precisely tailored to your needs. Get in touch with us!
