Edge AI Systems

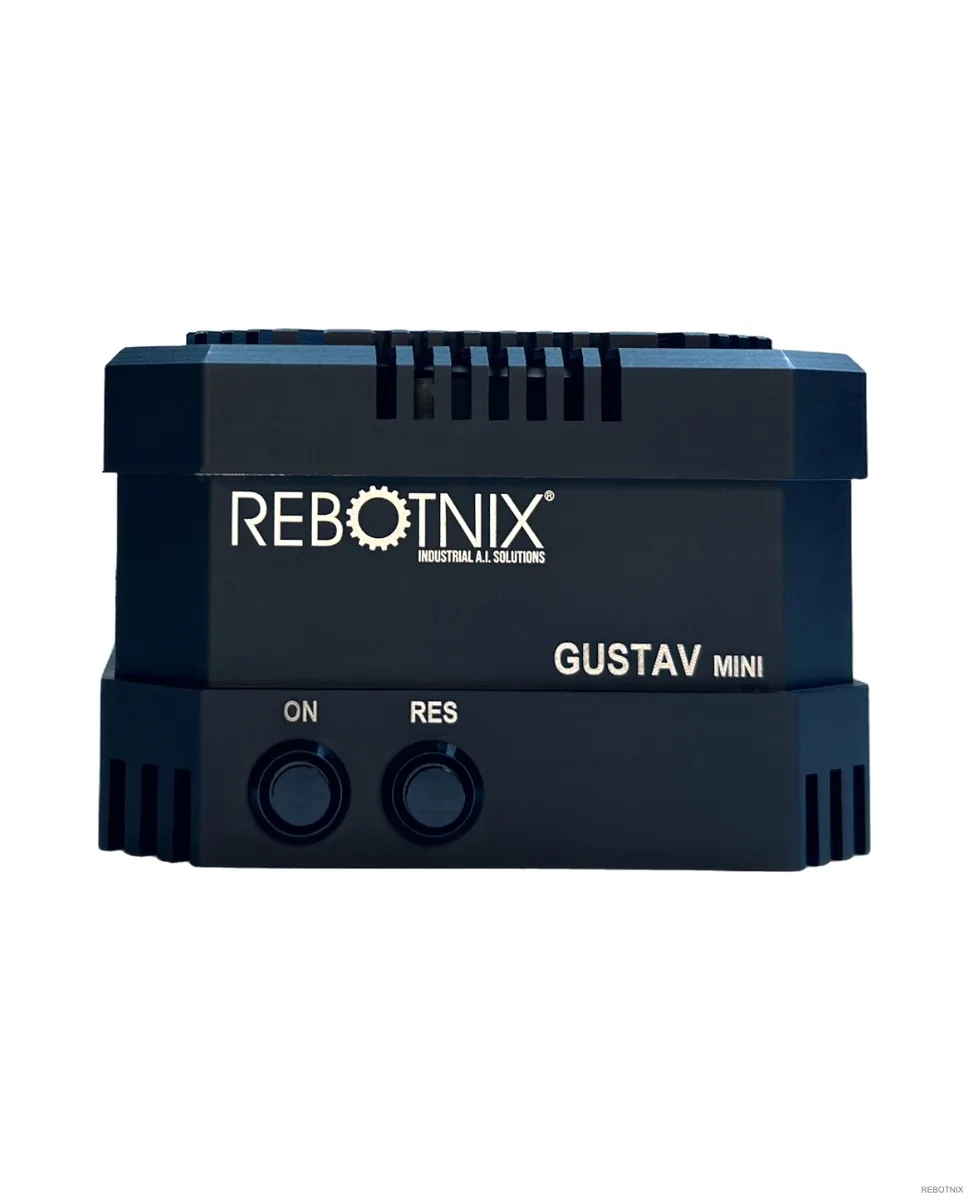

GUSTAV MINI 4 x SDI

Compact edge computer with four simultaneous broadcast camera inputs for local AI image analysis directly on the device.

from 3.488,20 €excl. VAT and shipping
IN PRODUCTION
Options & Add-ons

Multiple variants available. Price depends on configuration, we confirm the variant with the order confirmation.

  • Delivery time: 8-12 Wochen
  • Direct from the manufacturer, engineering support
SKU: RBX-GUSTAV-MINI-SDI-X4

GUSTAV MINI 4x SDI – Edge AI Computer for Multi-Camera SDI Systems

The GUSTAV MINI 4x SDI enables the simultaneous processing of up to four SDI camera signals locally on the device — the ideal hardware base for AI applications without cloud connectivity. Existing and new SDI camera installations can be integrated without replacement and without additional cabling.

Industrial Video Surveillance & Machine Vision

For industrial operations that want to use SDI cameras as the basis for local AI inference — all four channels simultaneously. Interference-free SDI transmission even over long cable runs in EMI-intensive environments.

Security & Perimeter Protection

Existing SDI camera installations can be integrated without replacing cameras or adding new cabling — as the foundation for AI-powered analysis such as person detection or behavior analysis (AI software available separately).

Mobile Platforms &

For vehicles and mobile systems that need to process professional SDI signals on-site. Compact form factor and 12–36 V DC input for straightforward vehicle integration.

Connectivity & Interfaces

  • 4× Mini-SDI input (up to 12G-SDI)
  • 1× RJ45 GbE for network connectivity
  • 1× USB 3.2 Type-C
  • 1× Mini DisplayPort 1.4
  • Input voltage: 12–36 V DC

Supported Video Formats

  • 12G-SDI: 4096 × 2160 @ 60 fps
  • 6G-SDI: 4096 × 2160 @ 30 fps
  • 3G-SDI: 1920 × 1080p @ 60 fps
  • HD-SDI: 1920 × 1080p/i, 1280 × 720p

Developed in Germany — NVIDIA Partner for Over a Decade

The GUSTAV MINI 4x SDI was developed and manufactured by REBOTNIX in Germany. As a long-standing NVIDIA partner, REBOTNIX relies on certified hardware and enables Edge AI with complete data sovereignty — without cloud dependency, without latency.
