Compact drone carrier board for NVIDIA Jetson Orin Nano / Orin NX with integrated Pixhawk Auto Pilot Bus (PAB) slot, CAN-centric, just 121 x 50 mm.

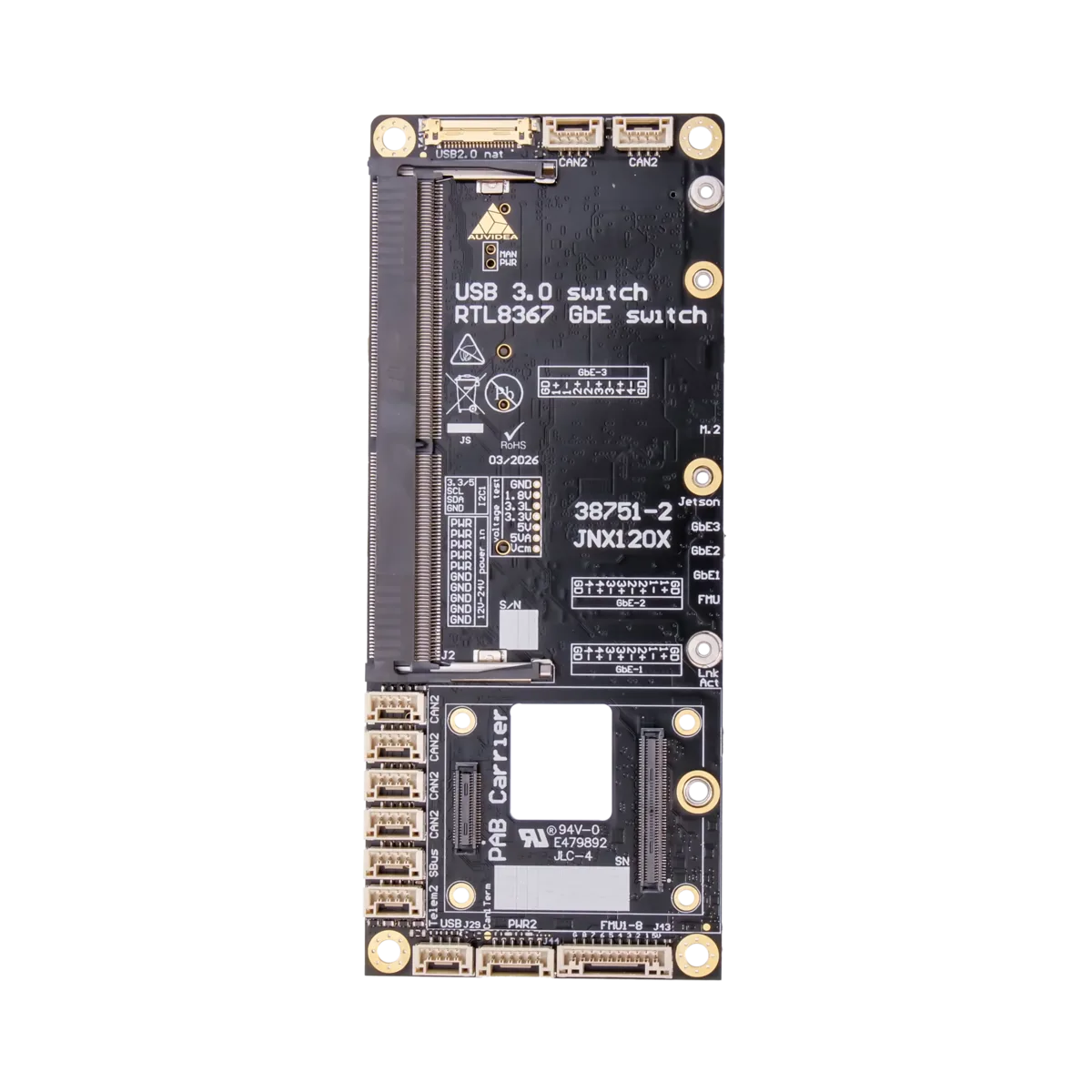

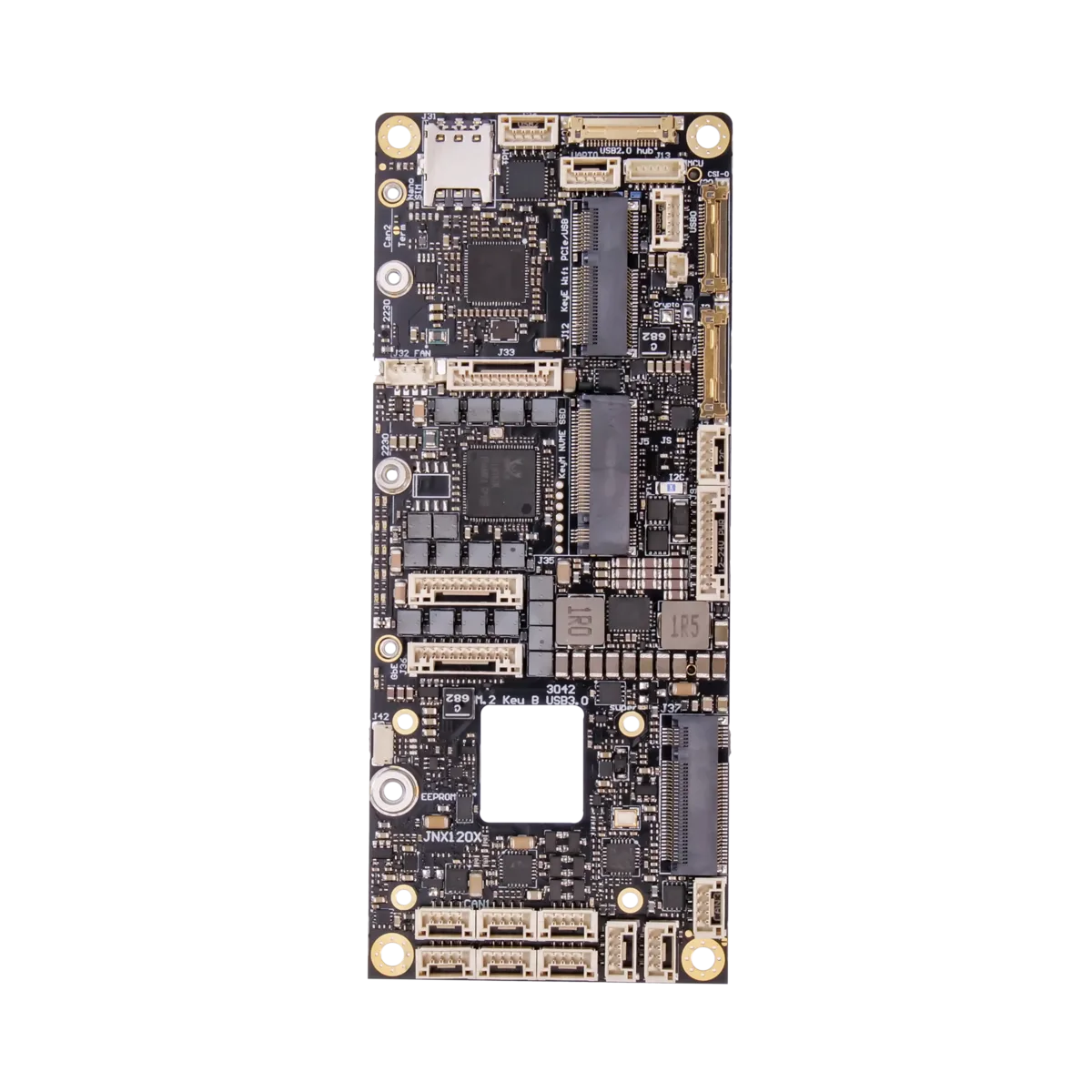

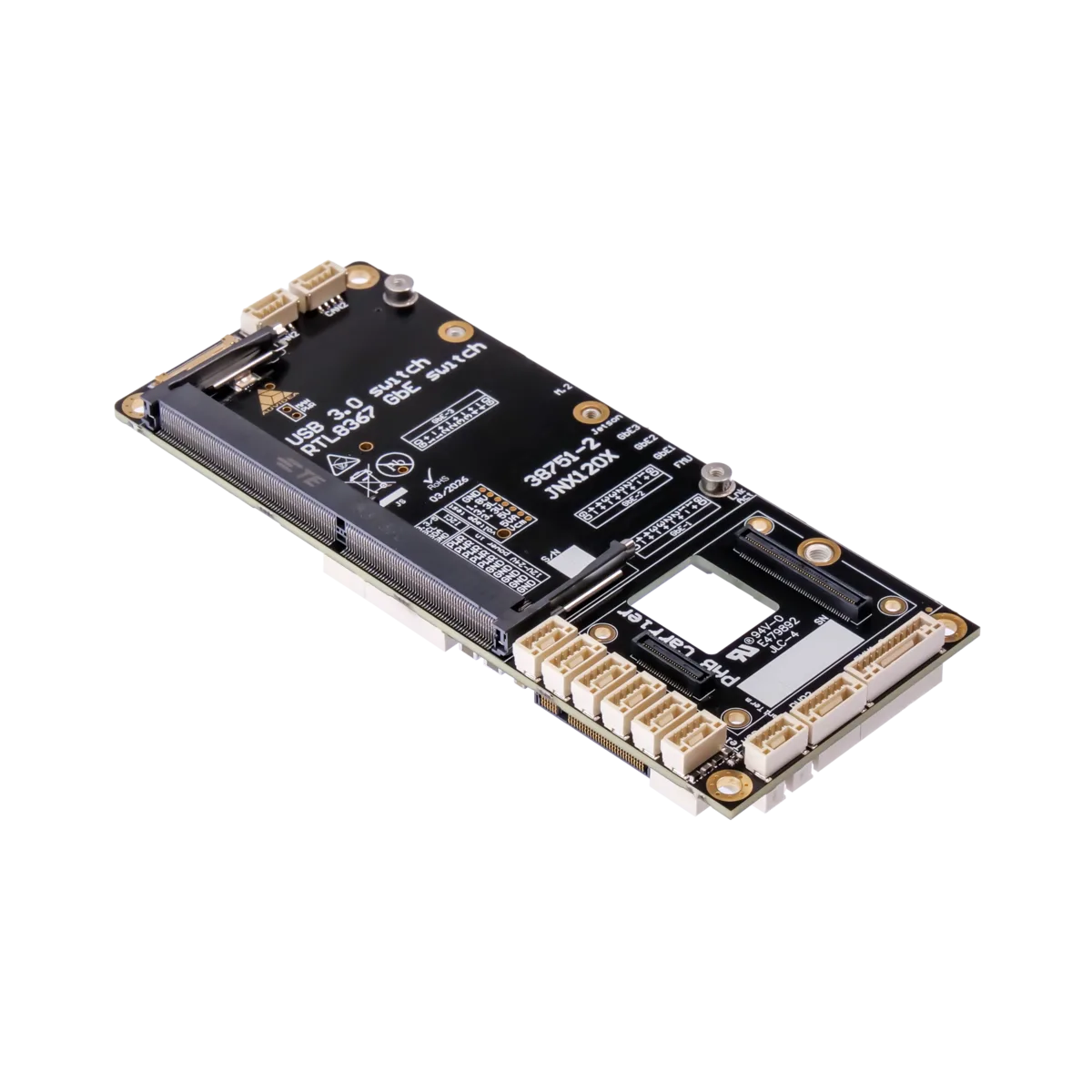

The JNX120X is the smallest Jetson drone carrier board in our partner range, refined and supplied by REBOTNIX for the NVIDIA Jetson Orin Nano and Orin NX modules. At just 121 mm x 50 mm with an integrated PAB (Pixhawk Auto Pilot Bus) slot, it is a modern, CAN-centric carrier board built for small to large drones and other weight- and space-constrained edge AI platforms.
Use Cases
– Small to large drones & UAV
– Autonomous mobile robots
– CAN-centric vehicle and industrial systems
– Weight- and space-constrained edge AI platforms
Technical Specifications
– Compatible Modules: NVIDIA Jetson Orin Nano, Orin NX (Super mode support)
– Dimensions: 121 mm x 50 mm, height 20 mm incl. heat spreader
– Weight: 47.2 g
– Camera: 2x CSI-2 (4 lanes, micro coax for optical camera)
– USB: USB 2.0 hub, 2x USB 2.0 (micro coax for thermal camera)
– Storage: M.2 Key M (2230) NVMe SSD
– Wi-Fi: M.2 Key E (2230, USB 2.0 and PCIe x1)
– Cellular: M.2 Key B (LTE and 5G)
– Ethernet: 5-port GbE switch (3x GbE external)
– CAN: yes, optional internal termination
– UART: 3x UART (2x user and debug), internal FC-to-Jetson UART connection
– Drone: PAB (Pixhawk Auto Pilot Bus) slot, RC (SBus and Telem2)
– Security: crypto chip (ATSHA204A), TPM (SLB9670)
– Other: I2C, MCU (optional watchdog), external RTC battery via 2-pin connector, 4-pin fan connector (PWM and tacho)
– Power Supply: 12 V to 24 V DC (reverse-voltage protection, inrush current limitation)
AI Software & Solutions
From board to finished application: REBOTNIX offers individual board customizations, tailored AI software, and enclosures made of aluminum or plastic with custom enclosure branding for orders of 25 units or more, all from a single source, precisely tailored to your needs. Get in touch with us!
