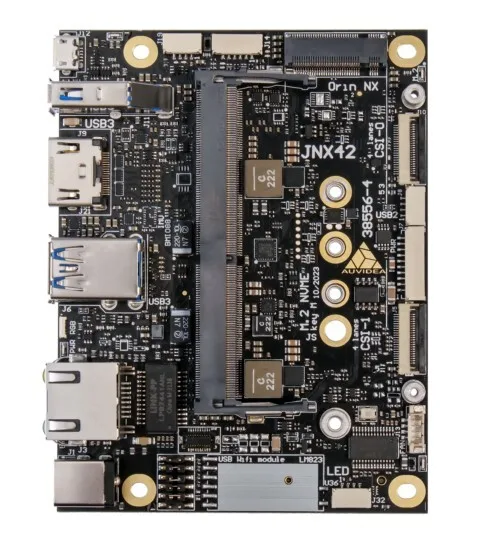

JNX42 – NANO & ORIN NX

Compact and versatile carrier board for the NVIDIA Jetson Orin Nano and Orin NX modules – the ideal hardware base for edge AI applications in robotics, vehicles, industrial automation, and surveillance systems. The JNX42 supports both modules, with up to 3× USB 3.0 Type-A available when using the more powerful Orin NX. CAN bus and PCIe x1 enable direct integration into vehicle and industrial systems.

Use Cases
– Robotics & Autonomous Systems
– Industrial Image Processing & Quality Control
– Security & Surveillance
– Mobile Platforms & Vehicle Applications

Technical Specifications
– Compatible Modules: NVIDIA Jetson Orin Nano, Orin NX
– Camera: 2× CSI-2 (4 lanes each)
– USB: 3× USB 3.0 Type-A (Orin NX / Orin Nano)
– USB 2.0: 2× Type-A + 1× Micro USB (Flashing)
– CAN: Yes
– PCIe: 1× PCIe x1
– Storage: M.2 Key M NVMe SSD
– LTE: M.2 Key B
– Power Supply: 12 V DC (optional 12-48 V with add-on module)

AI Software & Solutions
From board to finished application: REBOTNIX offers individual board customizations, tailored AI software, and enclosures made of aluminum or plastic with custom enclosure branding for orders of 25 units or more – all from a single source, precisely tailored to your needs. Get in touch with us!
