Edge AI Systems

RTK-GPS STATION

RTK-GNSS base station for centimeter-accurate position data, designed as a permanent reference station for continuous operation.

2.195,00 €excl. VAT and shipping
IN PRODUCTION
  • Delivery time: 4-6 weeks
  • Direct from the manufacturer, engineering support
SKU: RBX-RTK-GPS-STATION

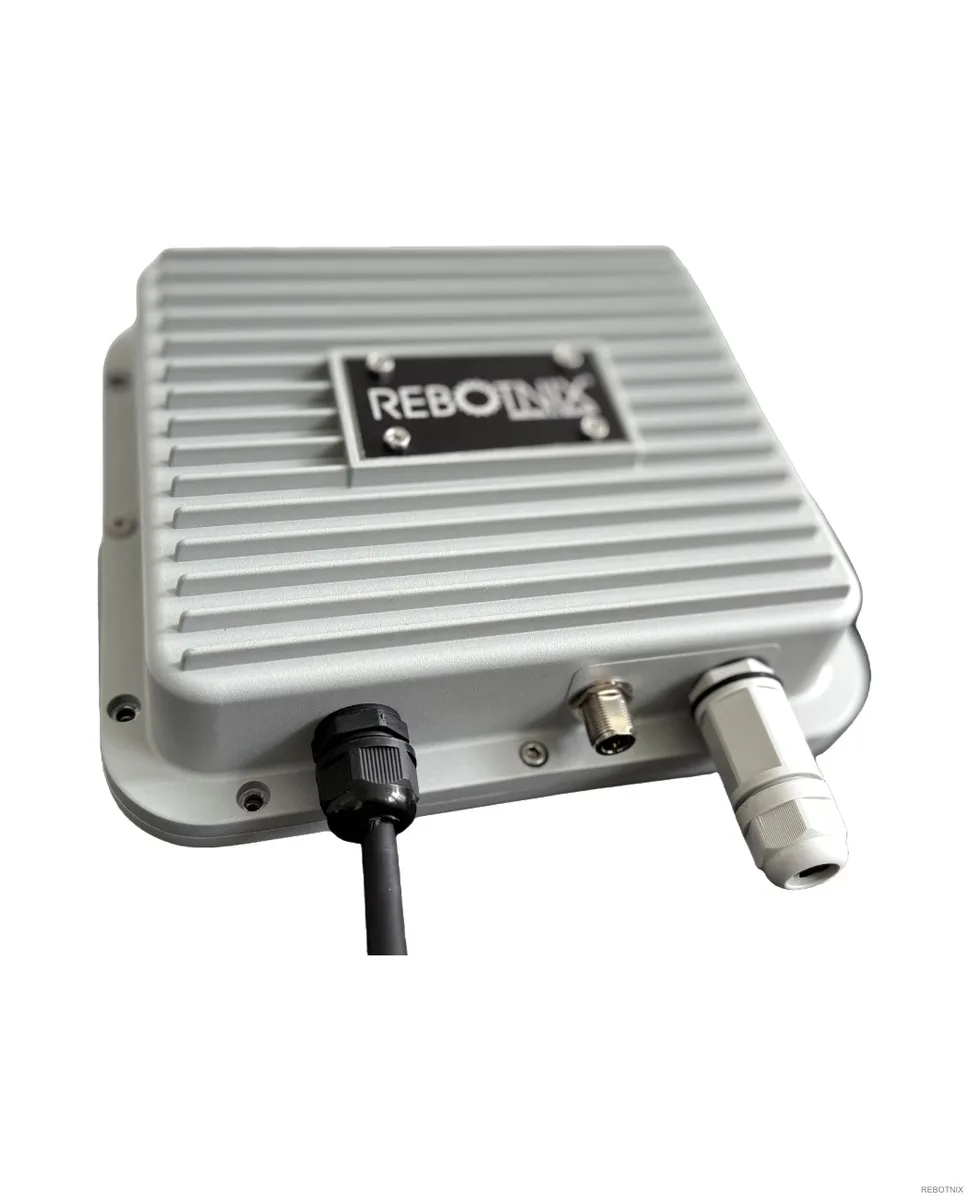

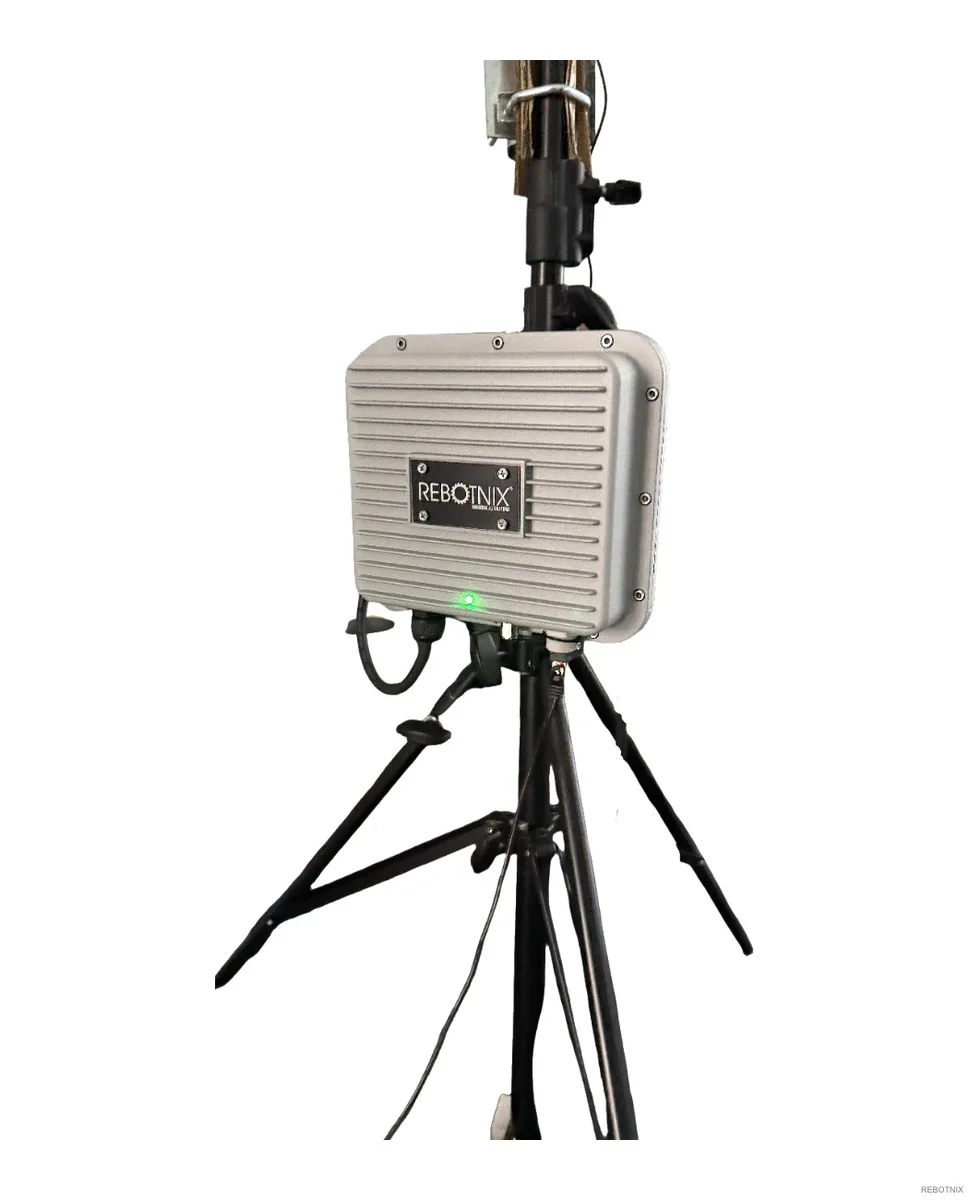

RTK GPS Station – High-Precision GNSS Positioning System

The RTK GPS Station by REBOTNIX delivers centimeter-accurate positioning data as a local reference point – for autonomous vehicles, robots, drones, and construction or agricultural machinery requiring precise navigation without external service providers. Once installed, it permanently supplies all systems within range with correction data – without cloud dependency, without ongoing subscription costs.

(AI software available separately – contact us to find the right solution for your application).

Smart City & Verkehrsmonitoring</

Stationary reference point for high-precision positioning in traffic analysis and autonomous urban mobility. Integration into local edge AI infrastructures via Ethernet – without external correction service providers.

Robotikflotten & Autonome Systeme

For autonomous vehicles, robots, and drones requiring centimeter-accurate positioning data. RTK correction data reliably compensates for atmospheric interference – even under difficult reception conditions.

Surveying & Construction

Robust base station for topographic surveys and machine control on construction sites. Once installed, it permanently delivers centimeter-accurate correction data for all rovers within range.

Precision Agriculture & Fleet Management

For tractors, harvesters, and spray drones requiring centimeter-accurate control in the field – fully local, independent of commercial correction networks and their subscription costs.

GNSS & Positioning

  • Centimeter-accurate RTK-GNSS positioning
  • Supported systems: GPS, GLONASS, Galileo, BeiDou, QZSS
  • Update rate: up to 30 Hz
  • Independent of commercial correction networks

Computing Platform & Connectivity

  • ARM64 processor onboard
  • Optional integration: NVIDIA Jetson Orin Nano / Orin NX
  • 1× RJ45 GbE for network connectivity
  • N-connector antenna port (GNSS antenna included)
  • Power supply: 230 V AC, max. 20 W

Technical Specifications

  • Station dimensions: 269 × 239 × 81 mm · Weight: 2,800 g
  • Antenna dimensions: 166 × 87 mm · Weight: 600 g
  • Operating temperature: -20 °C to 85 °C
