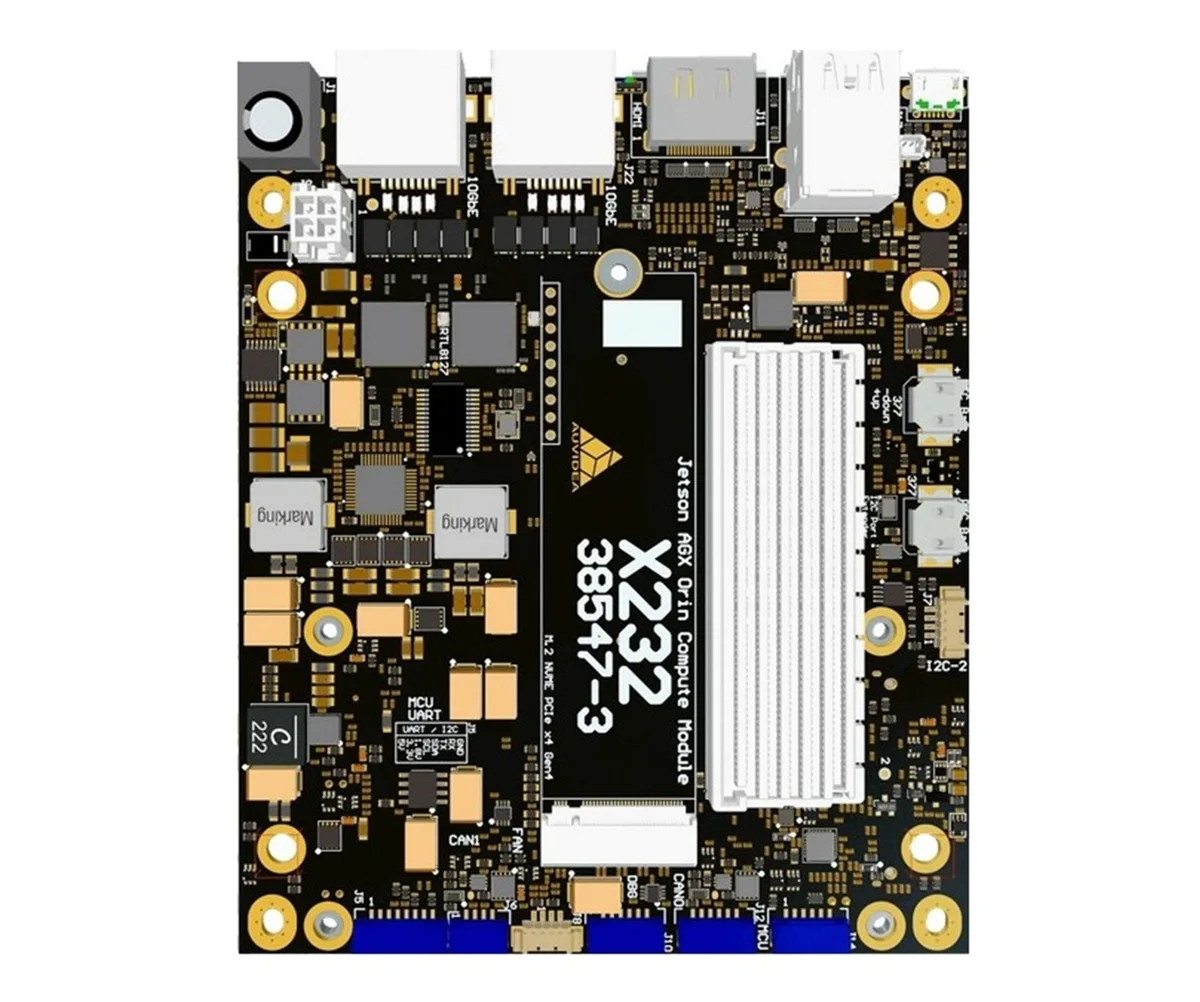

X232 – AGX ORIN

The X232 was developed for industrial series deployment. As a carrier board for the NVIDIA Jetson AGX Orin module, it offers an exceptional combination of connectivity, expandability, and protection features in a compact footprint (104.6 mm × 125 mm).

The core of the network connectivity is formed by two RTL8127 chips, each providing 10-Gigabit Ethernet over standard RJ45 — connected via PCIe x1 Gen4 and significantly more efficient than conventional 10G solutions. The dual PCIe x8 connector allows multiple Jetson Orin modules to be directly coupled, or connected to an expansion board that provides four additional M.2 Key M slots and four OCuLink connectors. For multi-camera applications, the dedicated CSI-2 expansion connector exposes all 16 MIPI lanes.

The power supply covers a wide range from 24 V to 48 V at up to 50 W system power. An onboard MCU, auto-flashing, a dedicated debug port, and the ATECC204A crypto chip for hardware-based key storage and license protection round out the feature set. Overvoltage protection, reverse polarity protection, and a hot-swap controller ensure reliable continuous industrial operation.

Use Cases
– Industrial Automation & Smart Factory
– Multi-Camera Systems & Machine Vision
– Security & Critical Infrastructure
– High-Performance Edge AI & Autonomous Systems

Technical Specifications
– Compatible module: NVIDIA Jetson AGX Orin
– Operating voltage: 24V – 48V
– Power modes: up to 50W
– HDMI: available
– USB 2.0: micro USB, OTG
– USB 3.2: 2x type A
– 10GbE: 2x RJ45 RTL8127, PCIe x1 Gen4
– PCIe x8: dual PCIe x8 connector
– M.2: Key M 2280 NVMe, PCIe x4 Gen4
– CAN: 1x with transceiver; 1x RX/TX with external transceiver
– UART: available
– I2C: 2x
– CSI-2: all 16 lanes on extension connector
– MCU: available
– Crypto chip: ATSH204A
– Auto flashing: available
– Debug port: available
– Fan connector: available (12V, PWM)
– RGB LED: available (GPIO controlled)
– RTC: available
– Overvoltage protection: available
– Reverse voltage protection: available
– Hot swap controller: available
– Dimensions: 104.6mm x 125mm

AI Software & Solutions
From board to finished application: REBOTNIX offers individual board customizations, tailored AI software, and enclosures made of aluminum or plastic with custom enclosure branding for orders of 25 units or more – all from a single source, precisely tailored to your needs. Get in touch with us!
