X242 – T5000 (THOR)

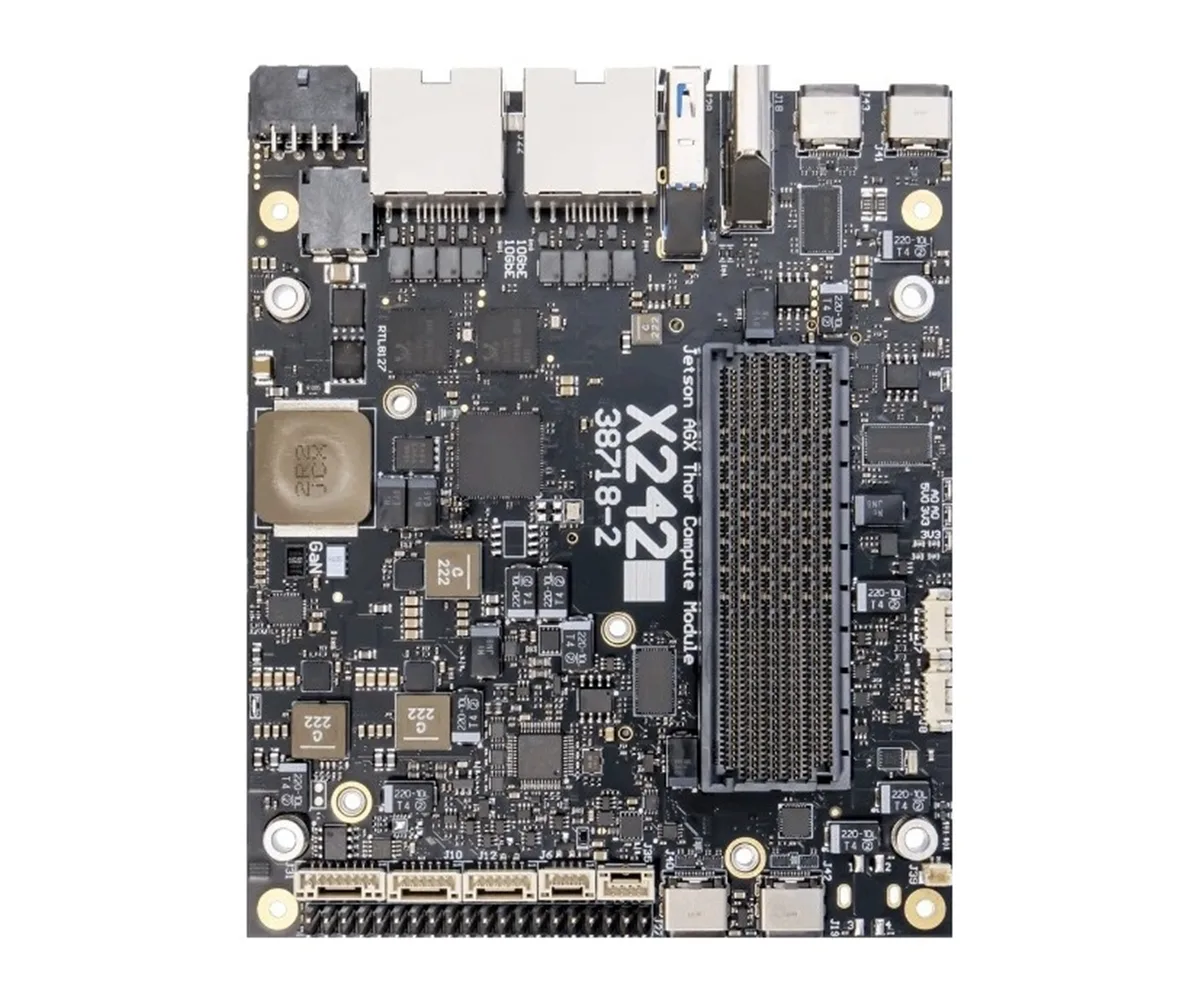

The X242 is the carrier board for NVIDIA Jetson T5000 (Thor), providing the hardware foundation for the most compute-intensive edge AI workloads. The PCIe x8 Gen 5 connector with up to 32 Gbit/s per lane enables high-performance expansion cards and multi-system architectures. Up to four displays can be operated simultaneously – via HDMI and three USB-C connectors with DisplayPort Alt Mode.

The network configuration is comprehensive: two RTL8127 chips deliver 10-Gigabit Ethernet each over standard RJ45, complemented by integrated WLAN (2.4/5 GHz, LM843) and an M.2 Key B slot for a 5G modem. The 16-lane CSI-2 connector (P3762-compatible) covers demanding camera applications. Industrial continuous operation is ensured by overvoltage protection, reverse polarity protection, a hot-swap controller, and the ATECC204A crypto chip for hardware-based security. MCU, auto-flashing, RTC, and a dedicated debug port complete the feature set. Power input is via a pluggable locking terminal (24V DC, PSU rated for 300W), with optional 48V operation available.

Use Cases
– Industry 4.0 & Production Automation
– Smart City & Traffic Monitoring
– Robotics & Autonomous Systems
– Connected Vehicles & Mobile Platforms

Technical Specifications–
– Compatible Module: NVIDIA Jetson T5000 Thor (Config 1)
– Dimensions: 104.6 × 125 mm
– Power Supply: 24 V DC (3.81 mm pluggable locking terminal)
– Power Consumption: up to 120 W (PSU rated for 300 W)
– Optional: 48 V operation (hardware modification, cooling required)
– Display: 1× HDMI (J11), 3× USB-C with DisplayPort Alt Mode (up to 4 monitors)
– USB: 1× USB 3.2 Gen 2×1 Type-A, 4× USB 3.2 Gen 2×1 Type-C
– Network: 2× RJ45 10GbE RTL8127 PCIe x1 Gen 4
– WLAN: 1× 2.4/5 GHz (LM843)
– PCIe: 1× PCIe x16 connector (x8 Gen 5, Rev 3 only)
– Storage: 1× M.2 Key M 2280 NVMe (PCIe x2 Gen 5)
– 5G Modem: 1× M.2 Key B (USB 3.2 Gen 2×1)
– Camera: 1× 16-lane CSI-2 (P3762-compatible)
– CAN: 1× with transceiver, 1× RX/TX with external transceiver
– UART: Yes
– I2C: 2×
– MCU: Yes
– Crypto Chip: ATECC204A
– Fan Connector: Yes (12 V, PWM)
– RGB LED: Yes (GPIO-controlled)
– RTC: Yes
– Autoflashing: Yes
– Debug Port: Yes
– Overvoltage Protection: Yes
– Reverse Polarity Protection: Yes
– Hot-Swap Controller: Yes
– Design: Developed and manufactured in Germany

AI Software & Solutions
From board to finished application: REBOTNIX offers individual board customizations, tailored AI software, and enclosures made of aluminum or plastic with custom enclosure branding for orders of 25 units or more – all from a single source, precisely tailored to your needs. Get in touch with us!
