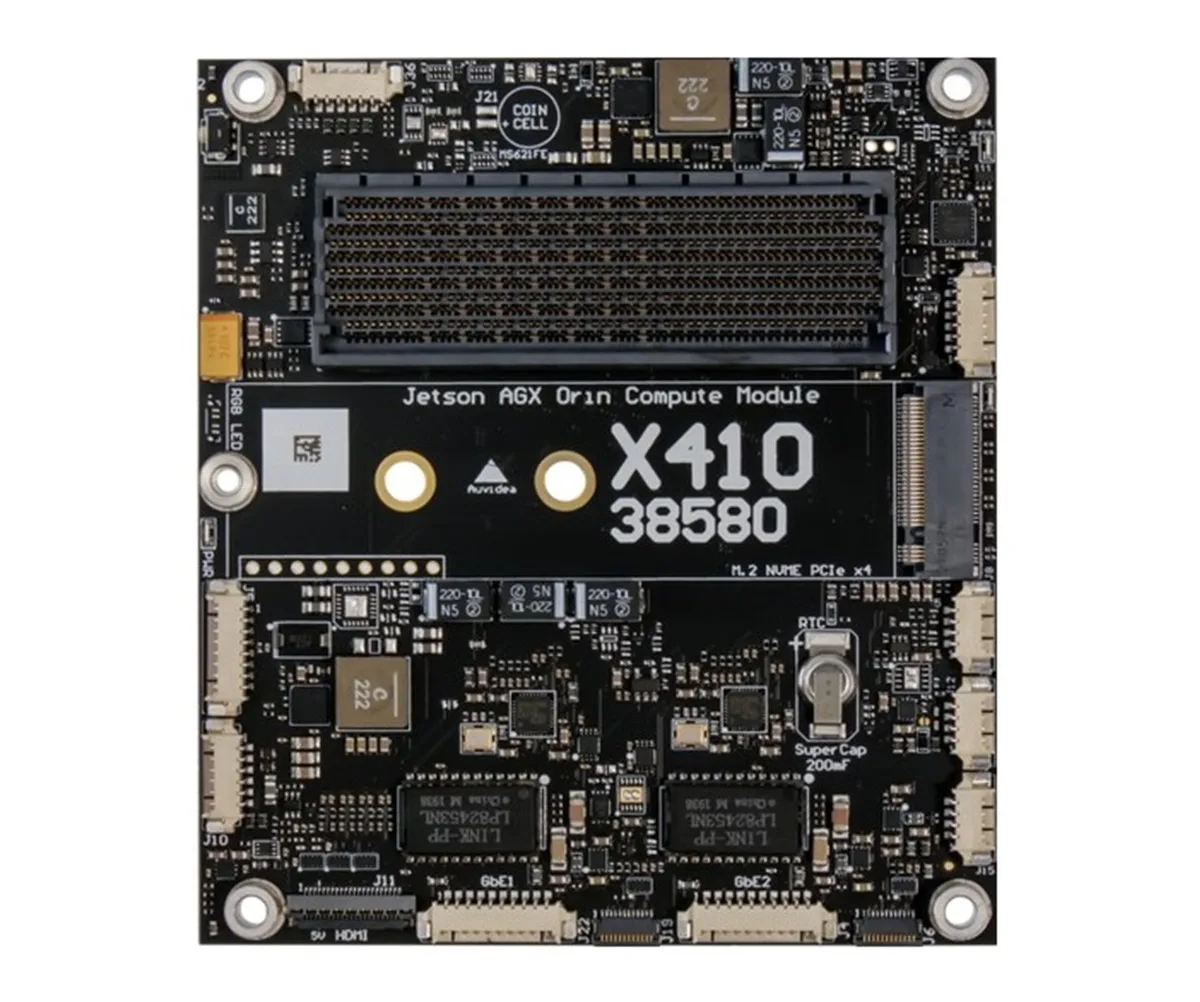

X410 – AGX ORIN

The X410 is a compact and expandable hardware platform for the NVIDIA Jetson AGX Orin, specifically designed for system integrators with demanding requirements for flexible enclosure integration and industrial robustness. Low-profile connectors and an extensive range of IP67-certified cable adapters (HDMI, RJ45, USB) enable deployment in harsh environmental conditions — without compromising connectivity or performance.

The board offers 2× CSI-2 (4 lanes each) for camera applications, a Micro-SD slot, battery holder, and 2× UART — ideal for image processing and inspection tasks.

In addition, the board features an MCU, auto-flashing, a crypto chip for software license protection, CAN, I2C, I2S, as well as 2× GbE (RTL8111) via 12-pin FPC and 2× USB 3.0/3.1. Power is supplied through an 8-pin PicoBlade connector (12 V). PoE can be retrofitted via an add-on; if needed, a 4-port GbE switch or USB-to-Ethernet adapter can further extend networking capabilities.

Use Cases
– Industrial Automation & Machine Vision
– Security & Surveillance Systems
– Robotics & Autonomous Systems
– Embedded & System Integration

Technical Specifications
– Compatible module: Jetson AGX Orin
– M.2 NVMe Key M: PCIe x4
– MIPI CSI-2: 2x CSI (4-lane)
– HDMI: 22-pin FPC
– SD card: available
– USB 3.0/3.1: 2x USB 3.0/3.1, 12-pin FPC (native – full performance)
– USB 2.0: 4-pin PicoBlade (flashing and host)
– Fan connector: 4-pin PicoBlade (12V; PWM/TACH)
– CAN0: available
– I2S / I2C: available
– UART (Console): available (3.3V)
– UARTs: 2x UART + 2x RS485 optional
– MCU: available
– Auto flashing: available
– Ethernet: 2x GbE (RTL8111)
– PoE: with add-on
– Crypto chip: software copy protection and licensing
– Battery holder: RTC lithium battery CR2032
– CAM LED: available
– Force recovery: available
– FR button: available
– Power input: 8-pin PicoBlade (12V)
– Dimensions: 90mm x 100mm

AI Software & Solutions
From board to finished application: REBOTNIX offers individual board customizations, tailored AI software, and enclosures made of aluminum or plastic with custom enclosure branding for orders of 25 units or more – all from a single source, precisely tailored to your needs. Get in touch with us!
